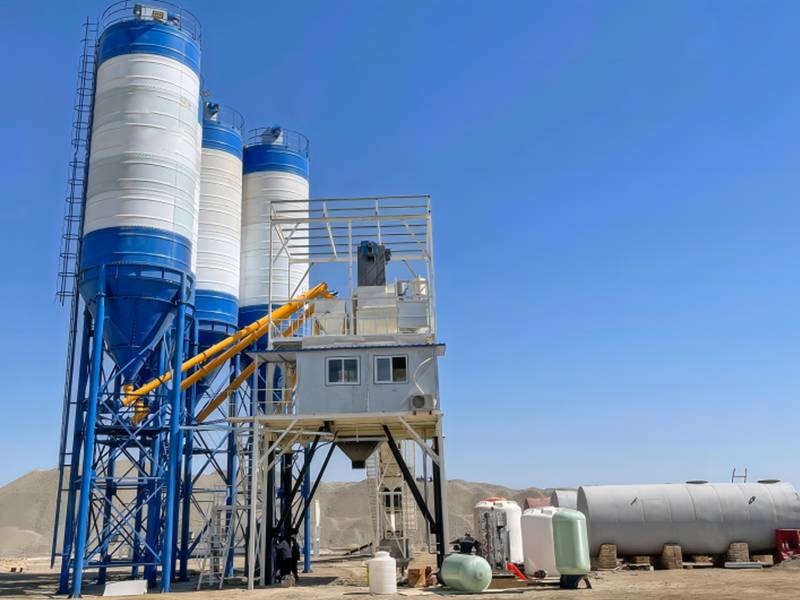

HZS180 Concrete Batching Plant

  • Feeding Mode: HZS180
  • Productivity: 180m3/h
  • Voltage: 380V, 50/60Hz, 220V, 440V, can be customized
  • Power: 282kw
  • Discharge height: 3.8m
  • Control system : Fully automatic/Manual
  • Application : Commercial concrete, construction projects, buildings, roads, bridge projects, airport, water projects and concrete prefabrication factory, etc.
What's AppSend InquirySend Emails
  • Product Details
  • Parameters

Introduction

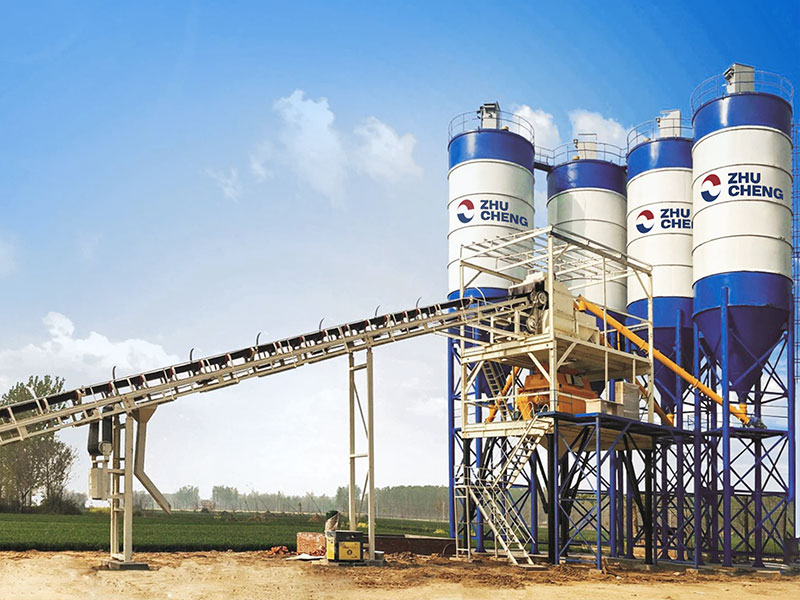

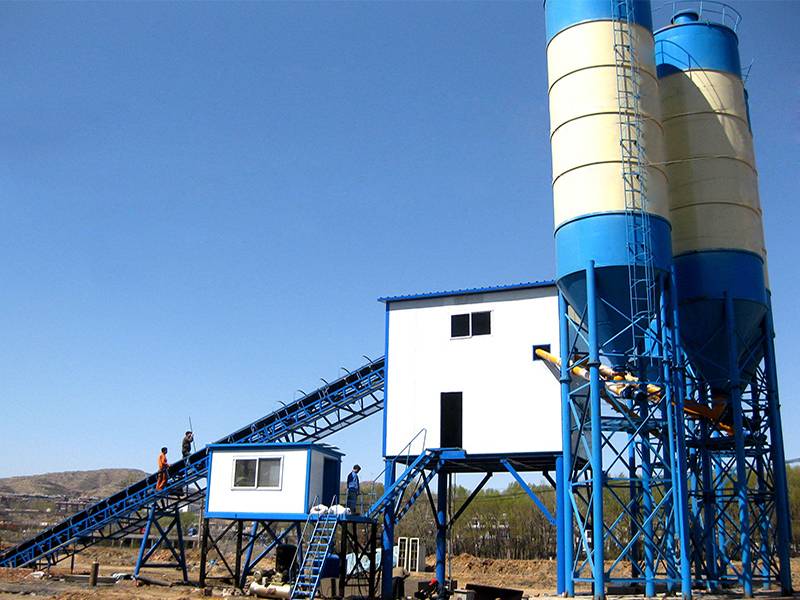

HZS180 180m3/h Belt Concrete Batching Plant

HZS180 belt concrete mixing plant adopts a JS3000 double horizontal shaft concrete mixer, batching machine adopts a PLD4800 batching machine, the theoretical output is 180 cubic meters per hour.


Main Details

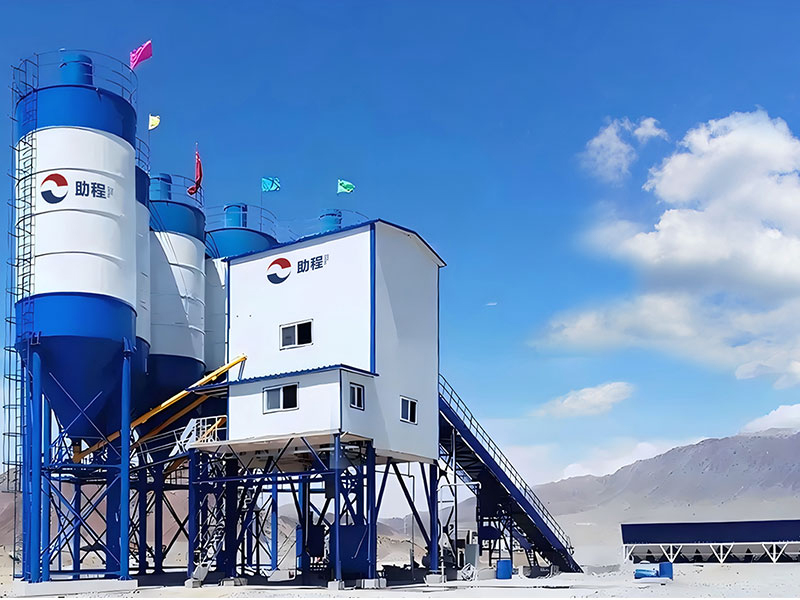

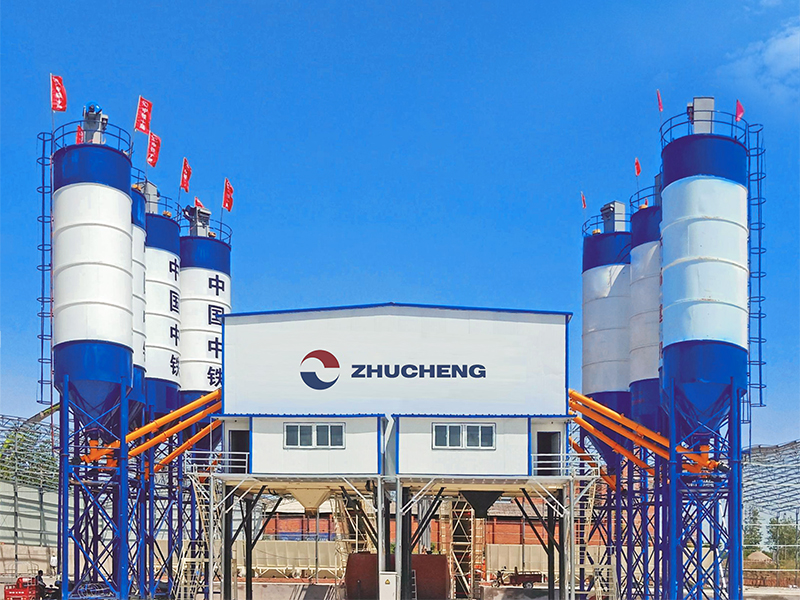

HZS180 Concrete Batching Plant

Mixing system

1.Perfect multi-sealing system to avoid leakage and protect shaft ends.
2.Equipped with changeable wear-resistance blade and liner plates, lifetime is over 60,000 times.
3.Equipped with auto lubrication pump, once fill for 5-7 days running.
4.Advanced motor and reducer driven system to keep stable performance.


Weighing System

1.Powder and water or additives are measured independently, ensuring rapid action and high accurate measurement.
2.High accuracy sensor ensures the error no more than 1%.

HZS180 Concrete Batching Plant

HZS180 Concrete Batching Plant

Aggregate Batching Cystem

1.Sand storage bin is with large vibrator, guarantee smooth and fast discharge.
2.Accumulative weighing system and separate weighing system are available choice.
3.High accuracy sensor ensures the error no more than 2%.


Aggregate Conveying System

1.Inclined angle up to 32 degree, stand small area.
2.Equipped with recycled belt conveyor to reuse the leakage material.
3.Vibrating Return cover to avoid sticks.
4.Equipped with maintenance aisle. Easy for maintenance and clean.
5.Fully rain cover to reduce the dust emission and protect the belt if customers need.

HZS180 Concrete Batching Plant

HZS180 Concrete Batching Plant

Control System

1.Automatic or manual can be adjusted flexibly smoothly.
2.All wires & cables are coded, easy to track and maintenance.
3.Intelligent management system for task tracking, printing, etc.
4.Computer+ PLC control system to ensure simple and stable operation, HD display can show clearly about the operation of each part.


Cement Screw Conveyor

1.High revolving speed, large conveying capacity, high precision and nice conveying condition.
2.Easy assembly, easy connection, reliable sealing and wide application.
3.Suitable for conveying a variety of powder, granular, small bulk materials.
4.Diameter as φ219mm/φ273mm/φ325mm, lengths as 6m, 8m or 10m, all can be customized.

HZS180 Concrete Batching Plant

HZS180 Concrete Batching Plant

Cement Silo

1.Vertical cement silo and horizontal cement silo are available for selection.
2.Capacity range from 50T to 300T. Accessories are including air-break device, gate valve, relief valve, level indicator, dust collector, etc.
3.High-quality steel, good sealing, stable support and long service life.


Advantages


Services

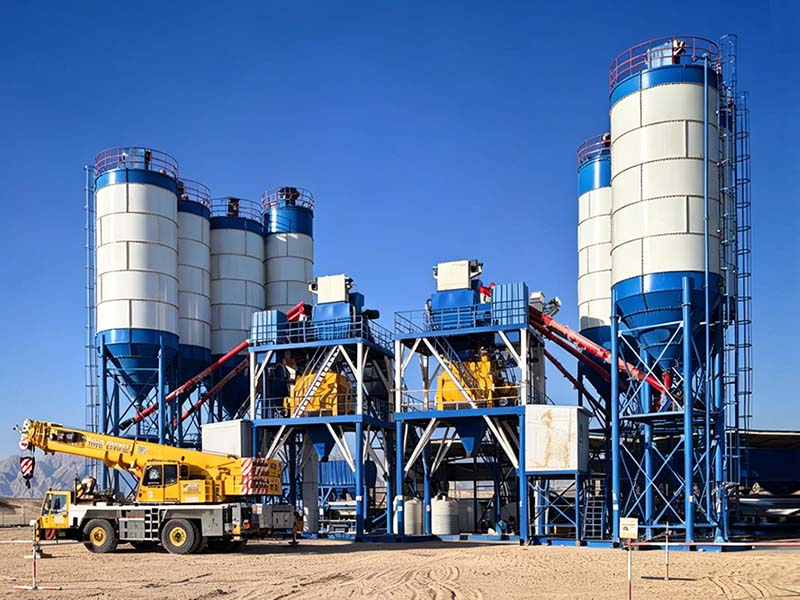

HZS180 180m3/h Belt Concrete Batching Plant

Pre-sale Services

1.Quick response.
2.Provide detailed quotation.
3.Provide scheme design and site planning.
4.Accept customer's visit.


On-sale Services

1.If necessary, send technicians to the site for installation and commissioning.
2.Provide complete technical information.
3.Free training of operators.

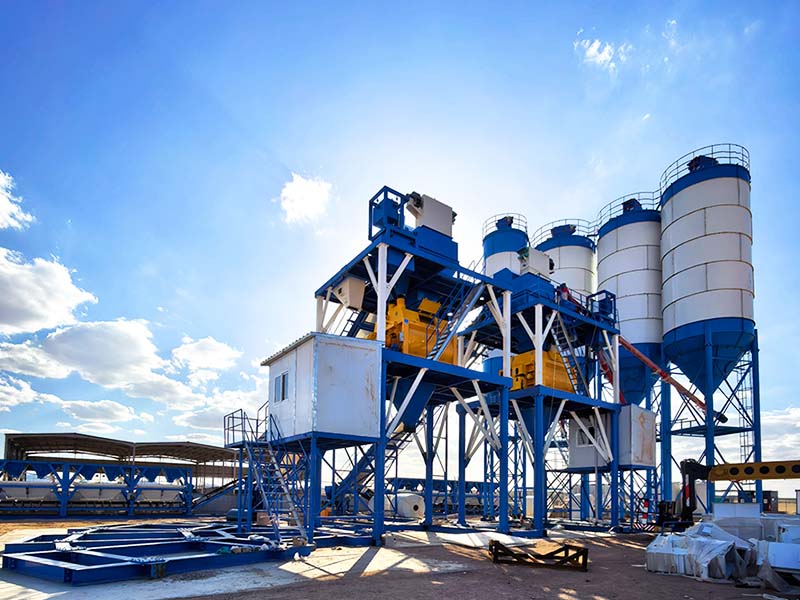

HZS180 180m3/h Belt Concrete Batching Plant

HZS180 180m3/h Belt Concrete Batching Plant

After-sale Services

1.One year warranty for mixing equipment, two years warranty for core electrical appliances, free accessories for quality problems during the warranty period, except for wearing parts.
2.Make regular remote visits.
3.Lifelong after-sales technical support service.

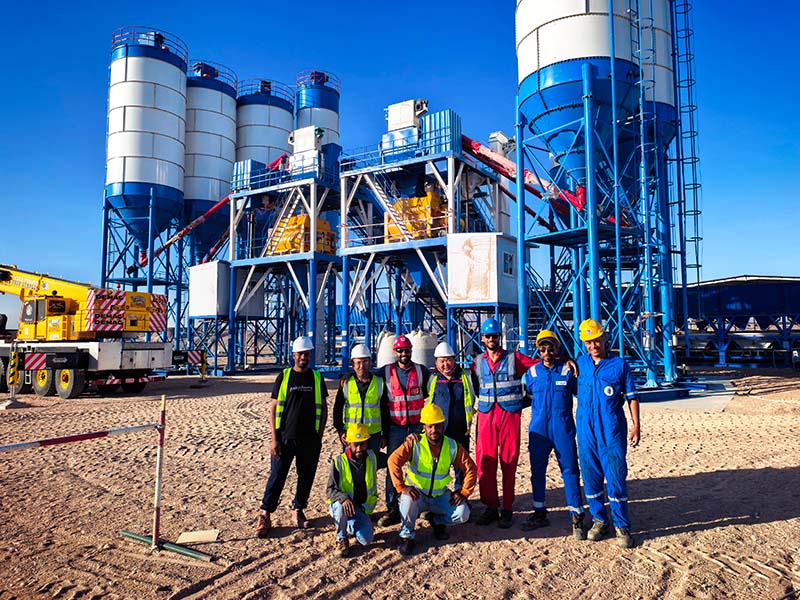

Customer visits


Delivery


Application

Whole
Machine
Model HZS180
Productivity 180m³/h
Discharge Height 4.1m
Total Power 282kw
Concrete Mixer Model JS3000
Discharge Volume 3000L
Charging Volume 4500L
Mixing Cycle 60S
Batching Machine Model PLD4800
Weighing Hopper Volume 4800L
Aggregate Silo Capacity 22m³
No. of Storage Hopper  3/4
Pneumatic System Air Compressor Model 1.8-7
Rated Exhaust Pressure 0.8MPa
Rated Displacement 1.67m³/min
Weighing System
 Accuracy
Aggregate  ±2%
Cement  ±1%
Water ±1%
Additive ±1%
