Introduction

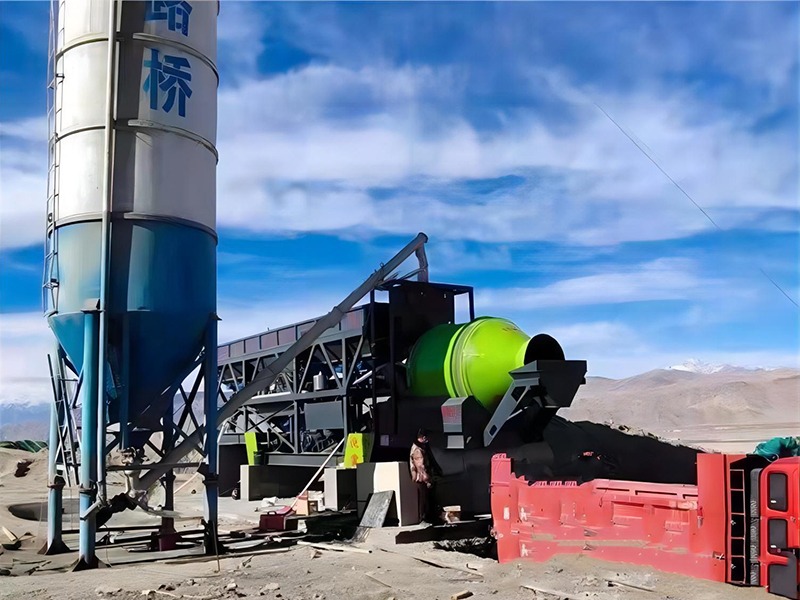

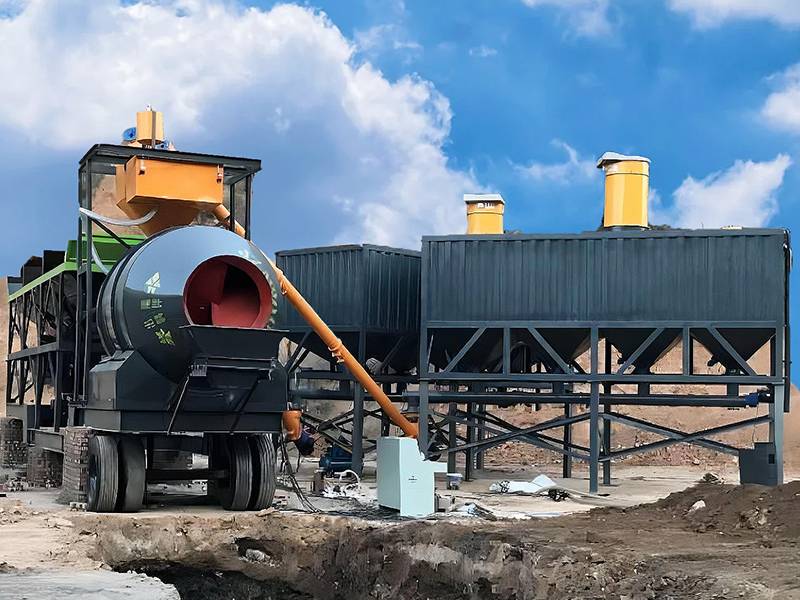

YHZM35 mobile drum concrete mixing plant adopts a JZM750 drum concrete mixer, batching machine adopts a PLD1200 batching machine, the theoretical output is 35 cubic meters per hour.
Main Details
Mixing system
1.Adopt rubber roller to drive the drum, with low noise, stable performance, simple operation and convenient movement, and more uniform stirring.
2.Can mix a variety of concrete such as fluidity, semi-hardness and hardness.
Weighing System
1.Powder and water or additives are measured independently, ensuring rapid action and high accurate measurement.
2.High accuracy sensor ensures the error no more than 1%.
Aggregate Batching Cystem
1.Sand storage bin is with large vibrator, guarantee smooth and fast discharge.
2.Accumulative weighing system and separate weighing system are available choice.
3.High accuracy sensor ensures the error no more than 2%.
Aggregate Conveying System
1.Inclined angle up to 32 degree, stand small area.
2.Equipped with recycled belt conveyor to reuse the leakage material.
3.Vibrating Return cover to avoid sticks.
Control System
1.Automatic or manual can be adjusted flexibly smoothly.
2.All wires & cables are coded, easy to track and maintenance.
3.Intelligent management system for task tracking, printing, etc.
4.Computer+ PLC control system to ensure simple and stable operation, HD display can show clearly about the operation of each part.
Cement Screw Conveyor
1.High revolving speed, large conveying capacity, high precision and nice conveying condition.
2.Easy assembly, easy connection, reliable sealing and wide application.
3.Suitable for conveying a variety of powder, granular, small bulk materials.
4.Diameter as φ219mm/φ273mm/φ325mm, lengths as 6m, 8m or 10m, all can be customized.
Cement Silo
1.Vertical cement silo and horizontal cement silo are available for selection.
2.Capacity range from 50T to 300T. Accessories are including air-break device, gate valve, relief valve, level indicator, dust collector, etc.
3.High-quality steel, good sealing, stable support and long service life.
Advantages
Services
Pre-sale Services
1.Quick response.
2.Provide detailed quotation.
3.Provide scheme design and site planning.
4.Accept customer's visit.
On-sale Services
1.If necessary, send technicians to the site for installation and commissioning.
2.Provide complete technical information.
3.Free training of operators.
After-sale Services
1.One year warranty for mixing equipment, two years warranty for core electrical appliances, free accessories for quality problems during the warranty period, except for wearing parts.
2.Make regular remote visits.
3.Lifelong after-sales technical support service.
Customer visits
Delivery
Application
