JZC750 Electric Engine Concrete Mixer

  • Feeding Mode: Lifting/Tipping Bucket
  • Productivity:20-22m3/h
  • Voltage:380V, 50/60Hz, 220V, 440V, can be customized
  • Power:19.25kw
  • Mixing time:60s
  • Control system : Automatic/Manual
  • Application : Construction projects, buildings, roads, bridge projects, airport, water projects and concrete prefabrication factory, etc.
What's AppSend InquirySend Emails
  • Product Details
  • Parameters

Introduction

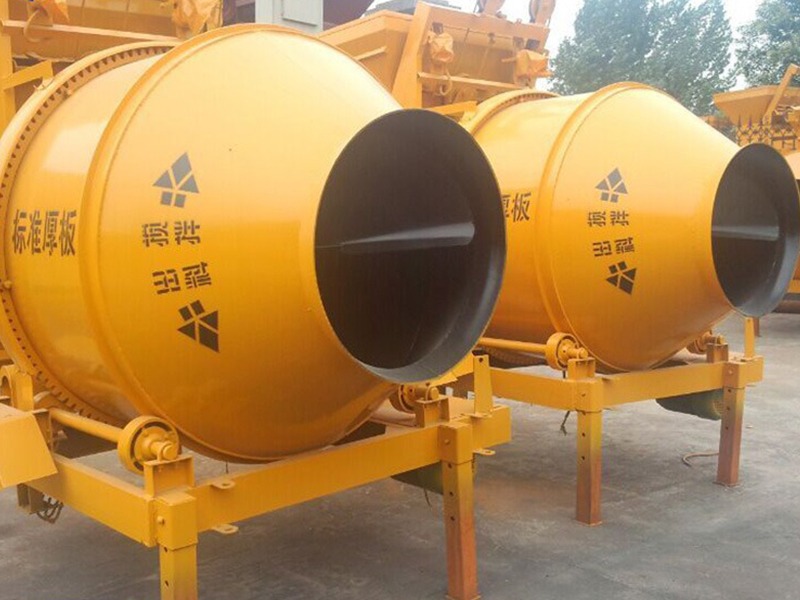

JZC750 Electric Engine Concrete Mixer

JZC750 electric concrete mixer is a self-falling concrete mixer with double-cone mixing drum for forward mixing and reverse discharging. Each drum can mix 750L of concrete (referring to the volume of compacted concrete), and can produce 20-22 cubic meters per hour.


Main Details

JZC750 Electric Engine Concrete Mixer

Feeding Hopper

  1. Skip tipping hopper and climbing hopper are optional.
  2. Thickened automatic climbing hopper saves time and effort and is not easy to be damaged.
  3. The tipping bucket has fast feeding speed and low energy consumption.

Transmission Mode

  1. Friction drum type and gear ring drum type, optional as required.
  2. Thickened gear ring, excellent technology, anti-bending deformation.
  3. Low noise, low energy consumption, stable operation, uniform stirring and simple operation.
JZC750 Electric Engine Concrete Mixer

JZC750 Electric Engine Concrete Mixer

Powerful Water Pump

Timely water delivery, scientific discharge and proper viscosity.


Electric Control

  1. Fully automatic electric box, simple to use and efficient to operate.
  2. The electrical components in the distribution box are mounted on an insulating board, which is safe and reliable and convenient to operate and maintain.
JZC750 Electric Engine Concrete Mixer

JZC750 Electric Engine Concrete Mixer

Pure Copper Motor

  1. High power all-copper wire motor, stable performance, high temperature resistance and not easy to burn.
  2. Sealed design, waterproof, oil-proof and dust-proof, stable performance and fast heat dissipation.

Solid Tugboat & Climbing Wheel

1. High load-bearing, anti-extrusion tugboat, reliable quality.
2. High-quality climbing wheel, optimal bearing position, easy to slide and not easy to break.

JZC750 Electric Engine Concrete Mixer

JZC750 Electric Engine Concrete Mixer

Lifting Steel Wire Rope

Lifting steel wire rope, wear-resistant and durable, long service life.


Advantages


Service

JZC750 Electric Engine Concrete Mixer

Pre-sale Services

  1. Quick response.
  2. Provide detailed quotation.
  3. Provide scheme design and site planning.
  4. Accept customer's visit.

On-sale Services

1. If necessary, send technicians to the site for installation and commissioning.
2. Provide complete technical information.
3. Free training of operators.

JZC750 Electric Engine Concrete Mixer
JZC750 Electric Engine Concrete Mixer

After-sale Services

  1. One year warranty for mixing equipment, two years warranty for core electrical appliances, free accessories for quality problems during the warranty period, except for wearing parts.
  2. Make regular remote visits.
  3. Lifelong after-sales technical support service.

Customer Visits


Delivery


Application

Model JZC750
Capacity 20-22m³/h
Discharging Volume 750L
Charging Volume 1200L
Mixing Motor Power 11kw
Hoist Power 7.5kw
Water Pump Power 0.75kw
Water Supply Accuracy 2%
Drum Rotating Speed 12r/min
Max. Aggregate Size 60-80mm
Weight 3500kg
Overall Dimension 4350*2250*4650mm
