JZC500-DH Diesel Engine Concrete Mixer

  • Productivity:18-20m3/h
  • Voltage:380V, 50/60Hz, 220V, 440V, can be customized
  • Power:25P
  • Mixing time:60s
  • Feeding Mode : Hydraulic
  • Max. Towing Speed: 20km/hc
  • Application : Construction projects, buildings, roads, bridge projects, airport, water projects and concrete prefabrication factory, etc.
What's AppSend InquirySend Emails
  • Product Details
  • Parameters

Introduction

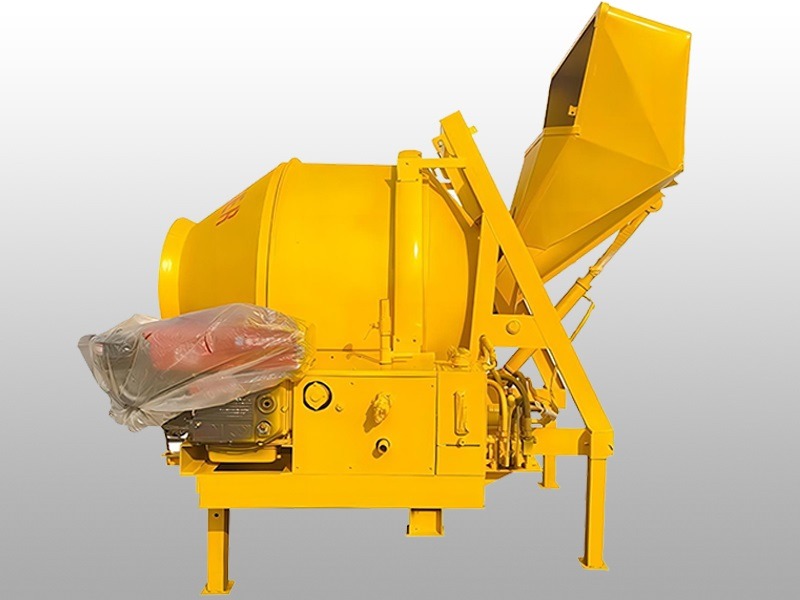

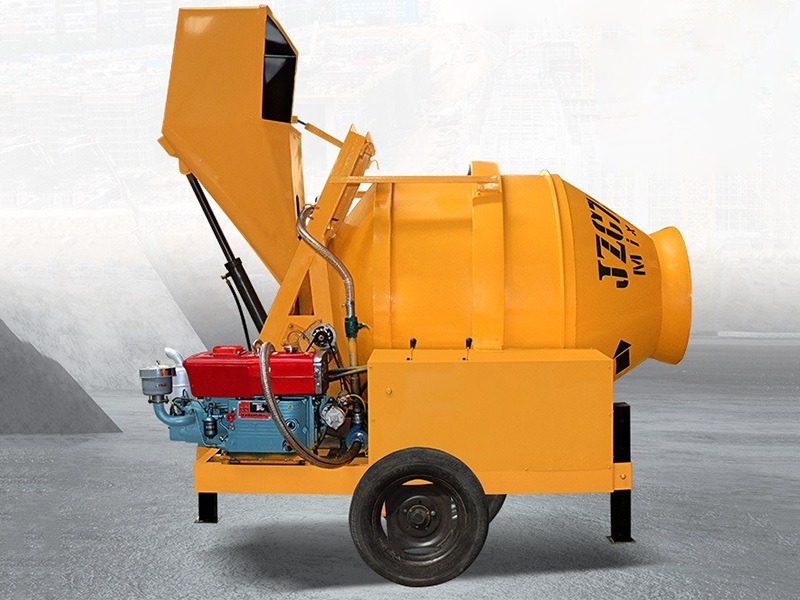

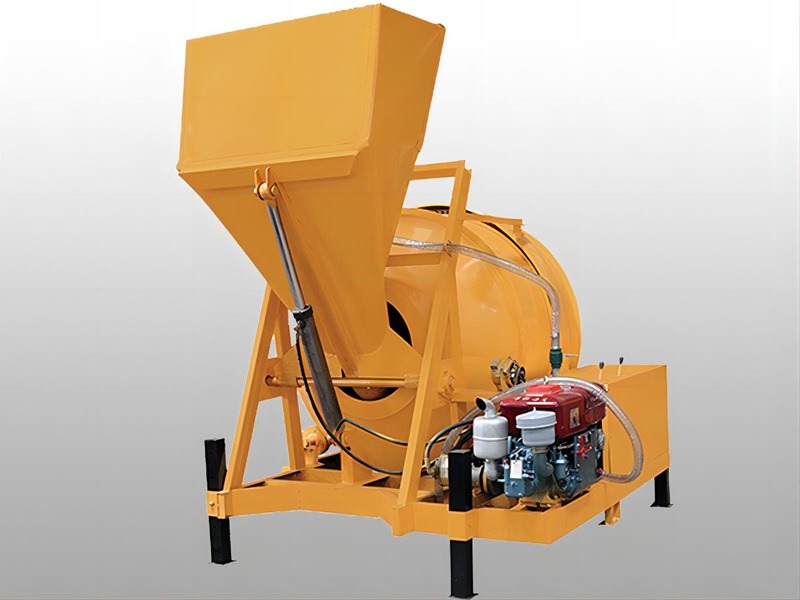

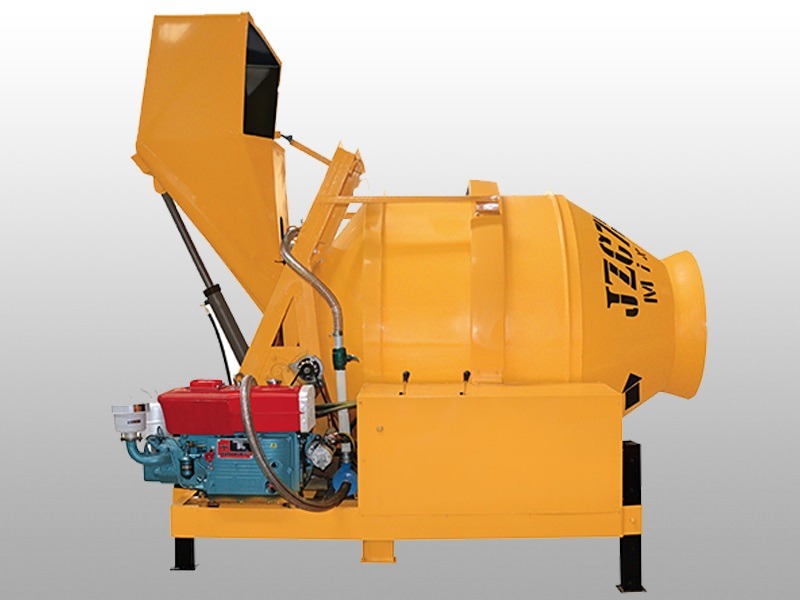

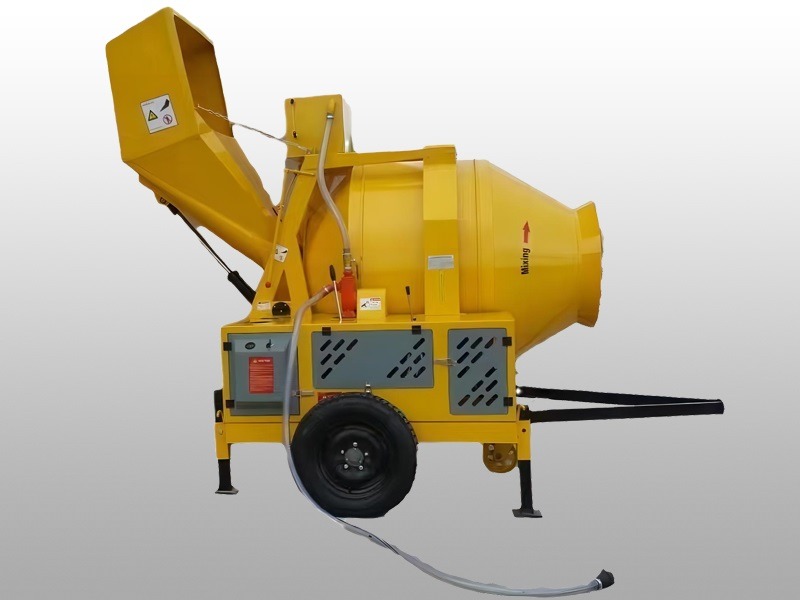

JZC500-DH Diesel Engine Concrete Mixer

JZC500 diesel concrete mixer is a self-falling concrete mixer with double-cone mixing drum for forward mixing and reverse discharging. Each drum can mix 500L of concrete (referring to the volume of compacted concrete), and can produce 18-20 cubic meters per hour.

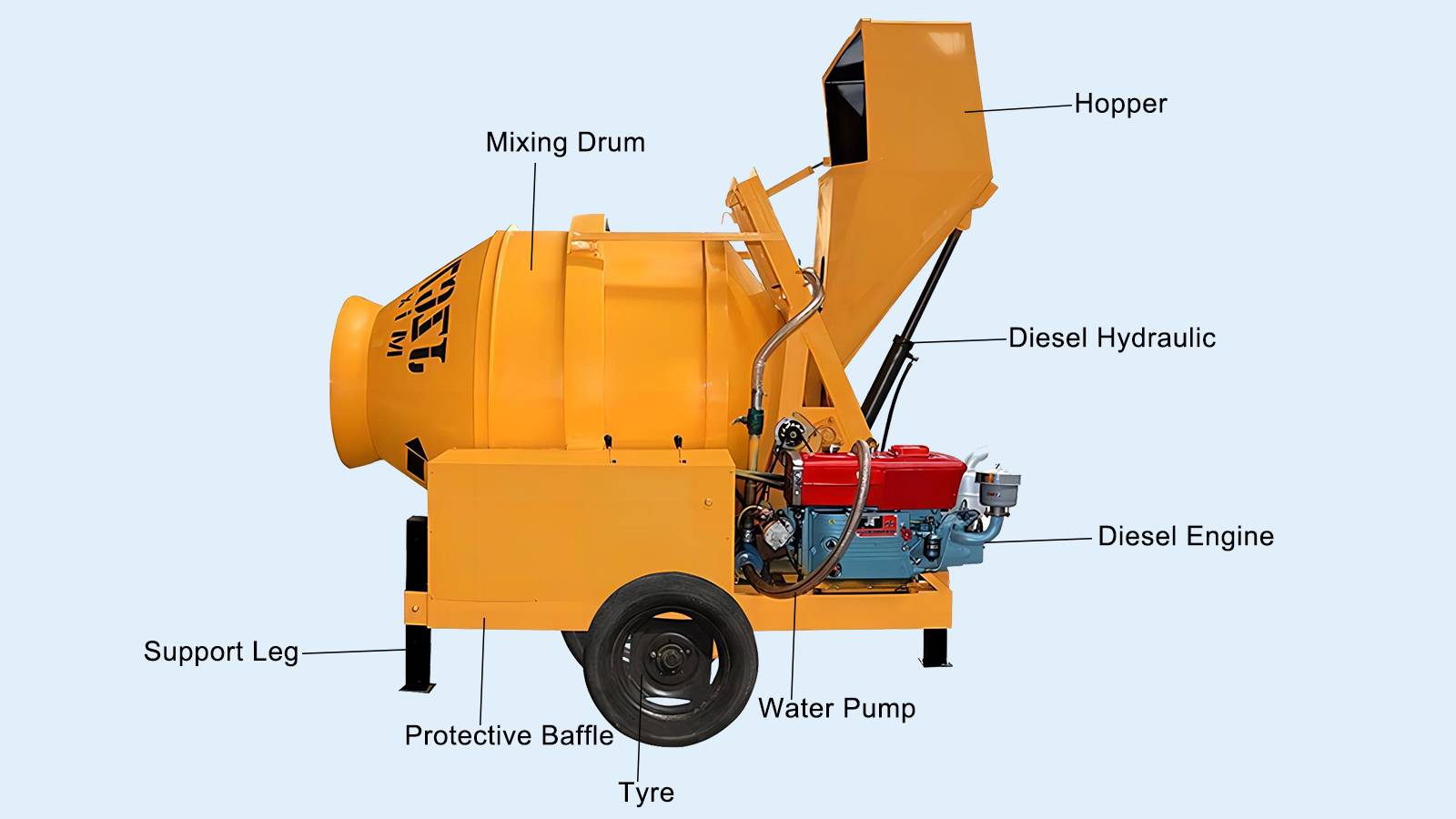

Main Details

JZC500-DH Diesel Engine Concrete Mixer

Diesel Engine

Strong power, ensuring safety and healthier outdoor use.

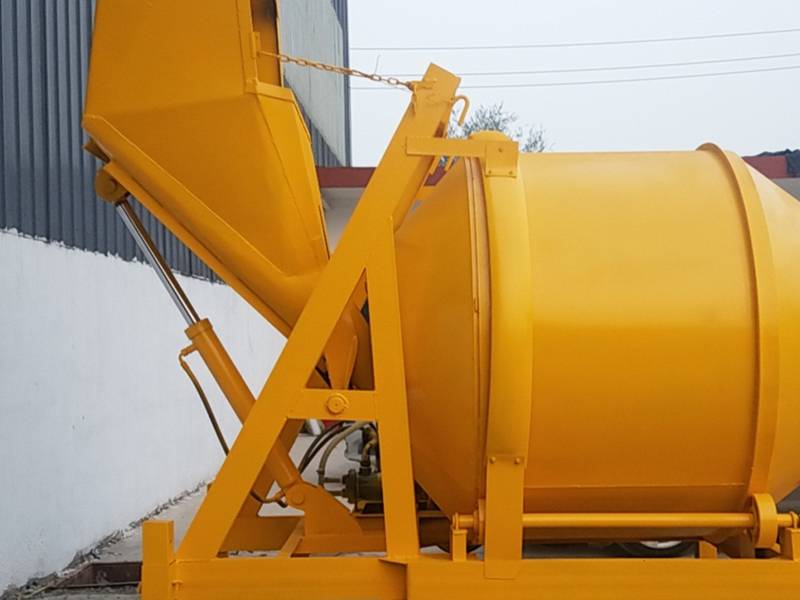

Feeding Mode

  1. The hydraulic rod supports the upper hopper and pushes the hopper up and down.
  2. Hydraulic loading, stable operation and long service life.
JZC500-DH Diesel Engine Concrete Mixer

JZC500-DH Diesel Engine Concrete Mixer

Powerful Water Pump

Timely water delivery, scientific discharge and proper viscosity.


Discharge Port

  1. Widening and thickening.The mixer is more wear-resistant and the mixing is more uniform.
  2. Inertia stirring mode, convenient operation, good sealing and even stirring.
JZC500-DH Diesel Engine Concrete Mixer

JZC500-DH Diesel Engine Concrete Mixer

Protective Baffle

The baffle below thedrum to protect the idlerand motor, which isdustproof, waterproof and easy to maintain.


Solid Tugboat & Climbing Wheel

1. High load-bearing, anti-extrusion tugboat, reliable quality.
2. High-quality climbing wheel, optimal bearing position, easy to slide and not easy to break.

JZC500-DH Diesel Engine Concrete Mixer

Advantages


Service

JZC500-DH Diesel Engine Concrete Mixer

Pre-sale Services

  1. Quick response.
  2. Provide detailed quotation.
  3. Provide scheme design and site planning.
  4. Accept customer's visit.

On-sale Services

1. If necessary, send technicians to the site for installation and commissioning.
2. Provide complete technical information.
3. Free training of operators.

JZC500-DH Diesel Engine Concrete Mixer
JZC500-DH Diesel Engine Concrete Mixer

After-sale Services

  1. One year warranty for mixing equipment, two years warranty for core electrical appliances, free accessories for quality problems during the warranty period, except for wearing parts.
  2. Make regular remote visits.
  3. Lifelong after-sales technical support service.

Customer Visits


Delivery


Application

Model JZC500-DH
Capacity 18-20m3/h
Discharging Volume 500L
Charging Volume 800L
Water Supply Accuracy ≤2%
Diesel Engine 25P
Tyre 6.50-16
Drum Rotating Speed 14r/min
Max. Aggregate Size 60-80mm
Weight 1500kg
Overall Dimension 2800*2200*2580mm
