Pneumatic Weighing Batching Machine

  • Model: PLD1600,PLD2400,PLD3200,PLD4800,can be customized
  • productivity:80m3/hr-220m3/hr
  • Num.of Batching Types:2/3/4, can be customized
  • Storage Hopper:8m3-25m3, can be customized
  • Batching Accuracy:±2%
  • Feeding Height : 2800-3400mm
  • Application : Construction projects, buildings, roads, bridge projects, airport, water projects and concrete prefabrication factory, etc.
What's AppSend InquirySend Emails
  • Product Details
  • Parameters

Introduction

Penumatic Weighing Batching Machine

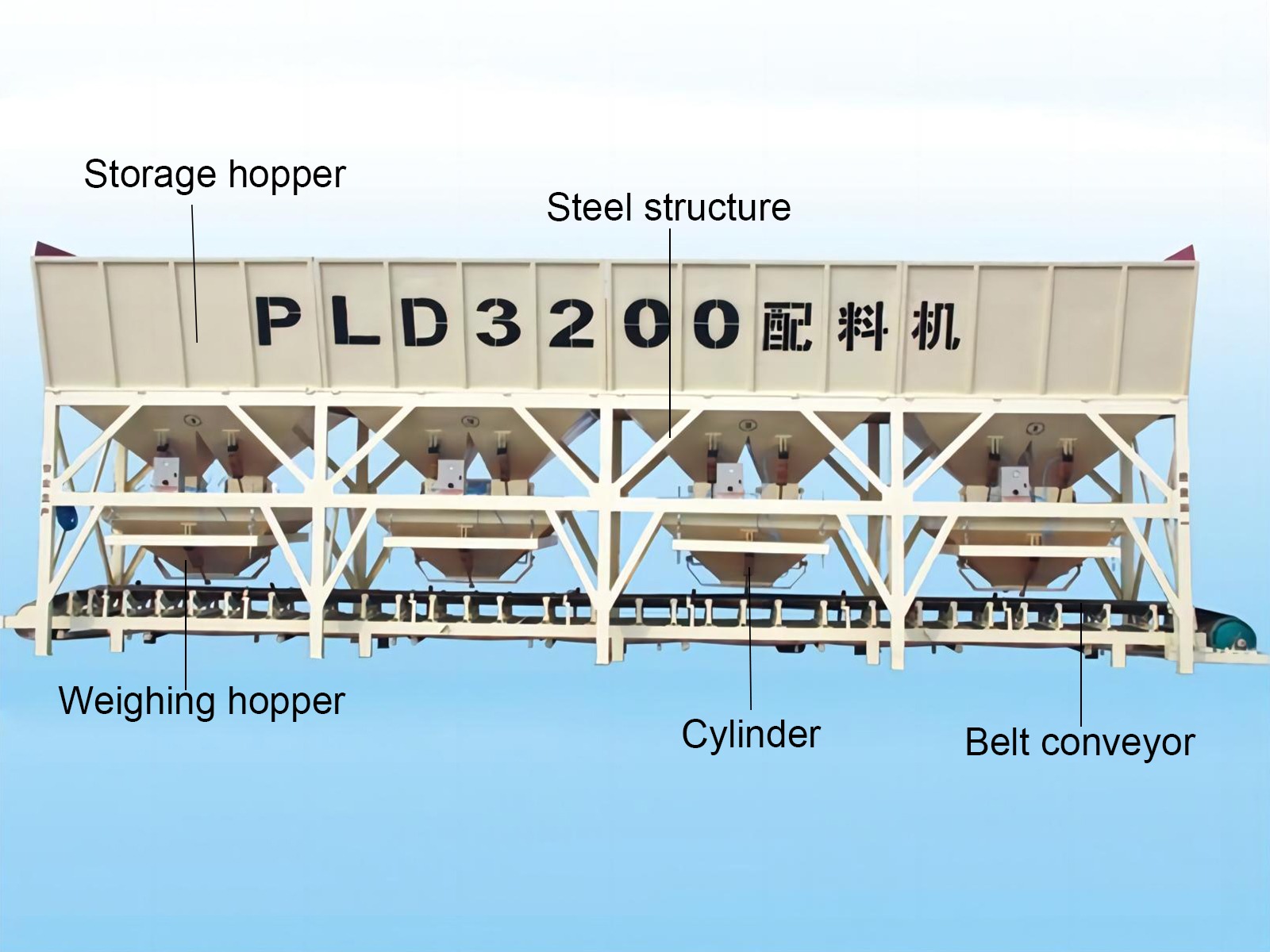

Pneumatic Weighing Batching Machine is composed of storage hopper, weighing hopper, level conveying belt, etc. Aggregates are discharged from storage hopper into weighing hopper by air cylinder and are discharged again to level conveying belt via discharge door controlled by air cylinder after weighing.

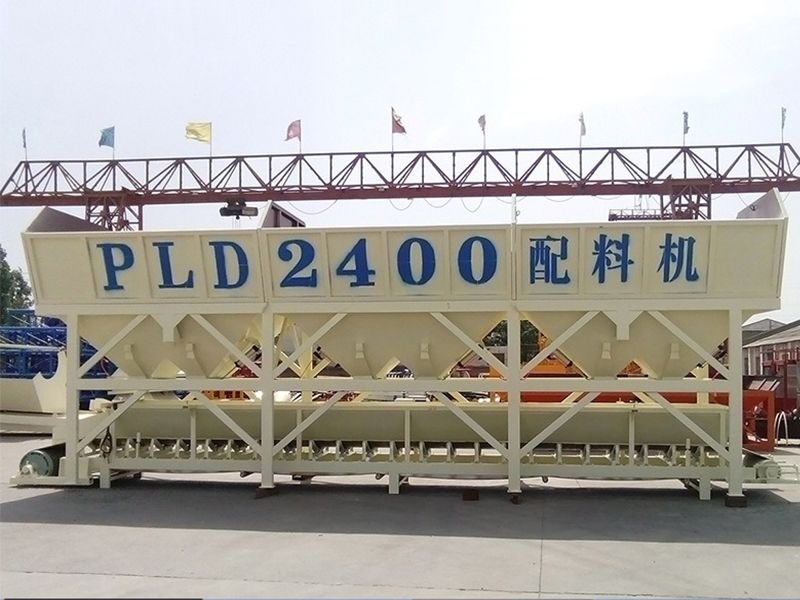

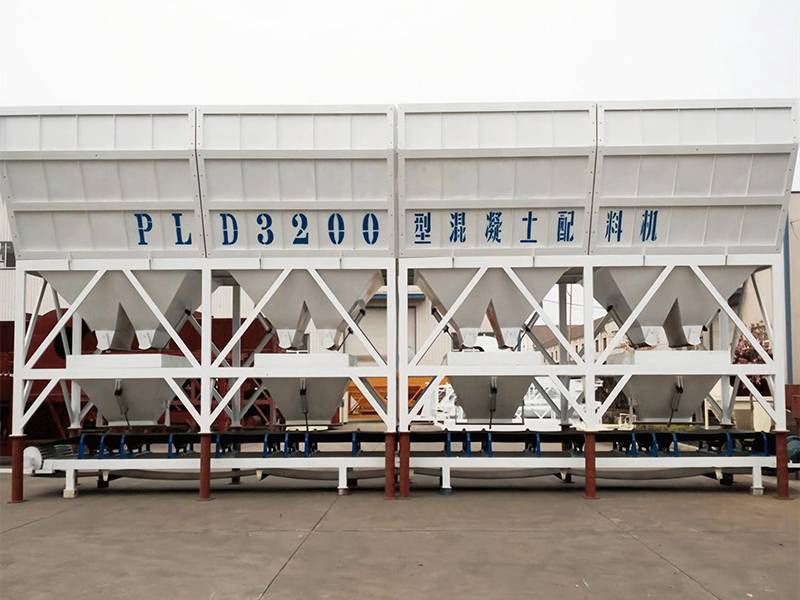

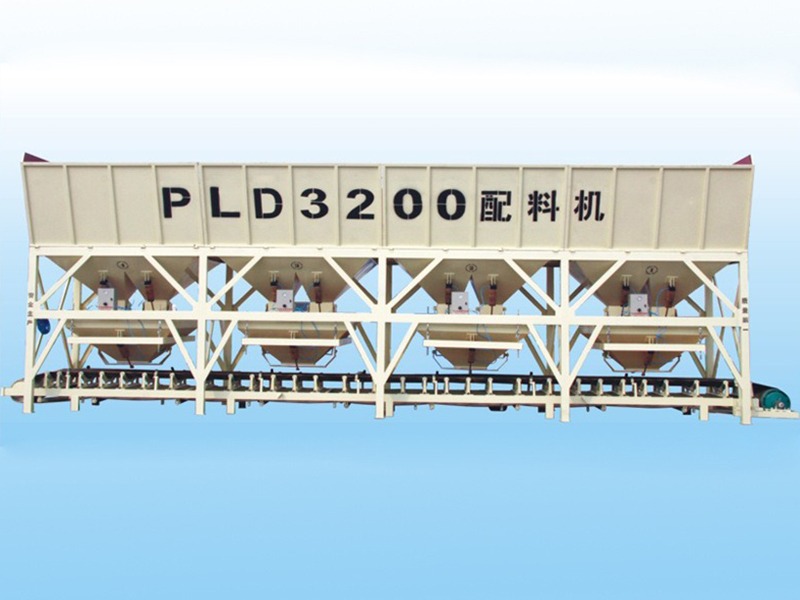

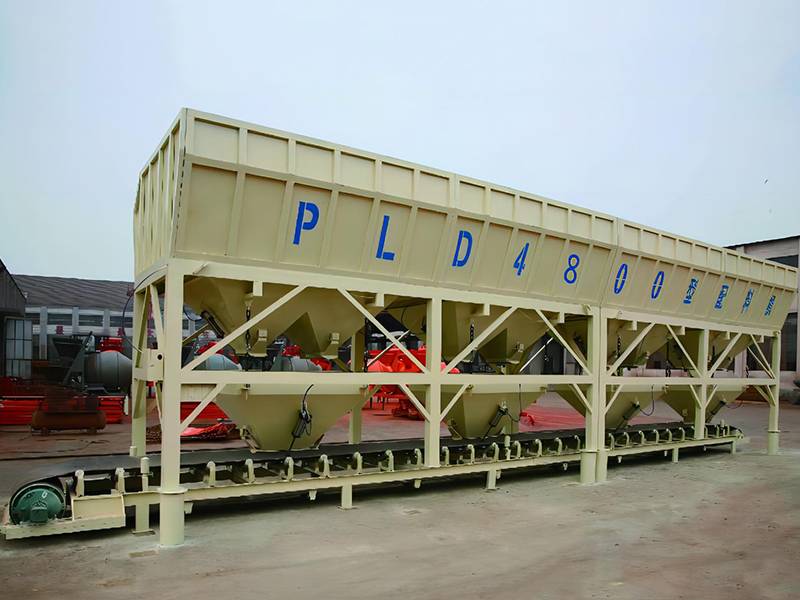

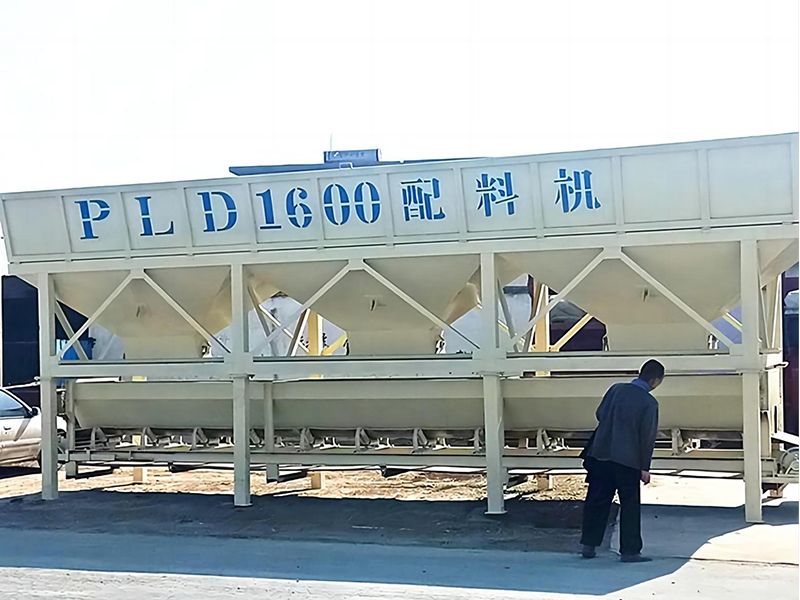

It has PLD1600, PLD2400, PLD3200, PLD4800, etc models. The hopper volume can be customized by user demands.


Main Details

Penumatic Weighing Batching Machine

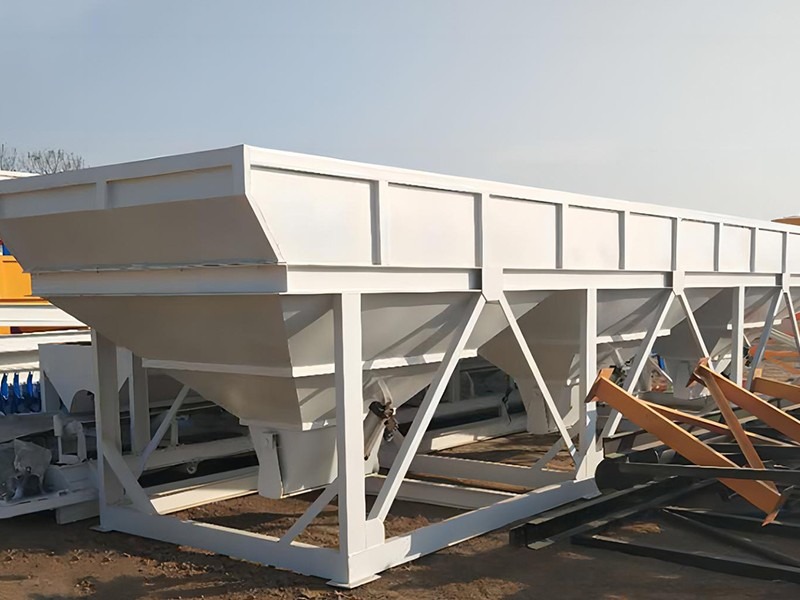

Storage Bin Hopper

1.The number of hoppers in batching machine is determined to the types of stones and sand. Storage silos are generally divided into 2, 3, 4 silos and can store 3-6 kinds of materials.
2.The design of large storage bin reduces the loading times of the loader in the later period, and it is equipped with a screen to prevent large-size aggregate from entering the mixing machine.

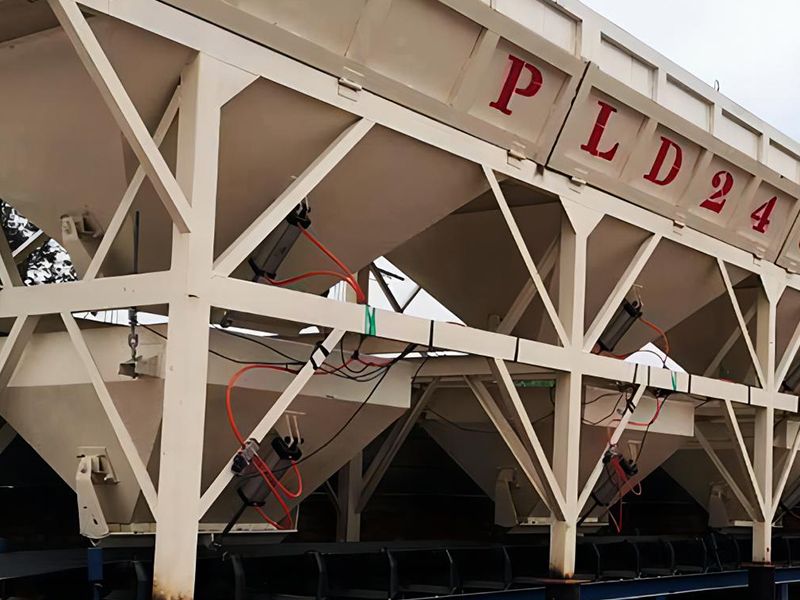

Weighing Hopper

1.Mainly used for counterweight of aggregate. High accuracy sensor ensures the error no more than 2%.
2.The bottom is equipped with belt conveyor, which is durable, accurate and continuous.
3.Weighing system adopts weight controller and sensor, which can quantify, mix and control materials, and automatically modify the drop.

Penumatic Weighing Batching Machine

Penumatic Weighing Batching Machine

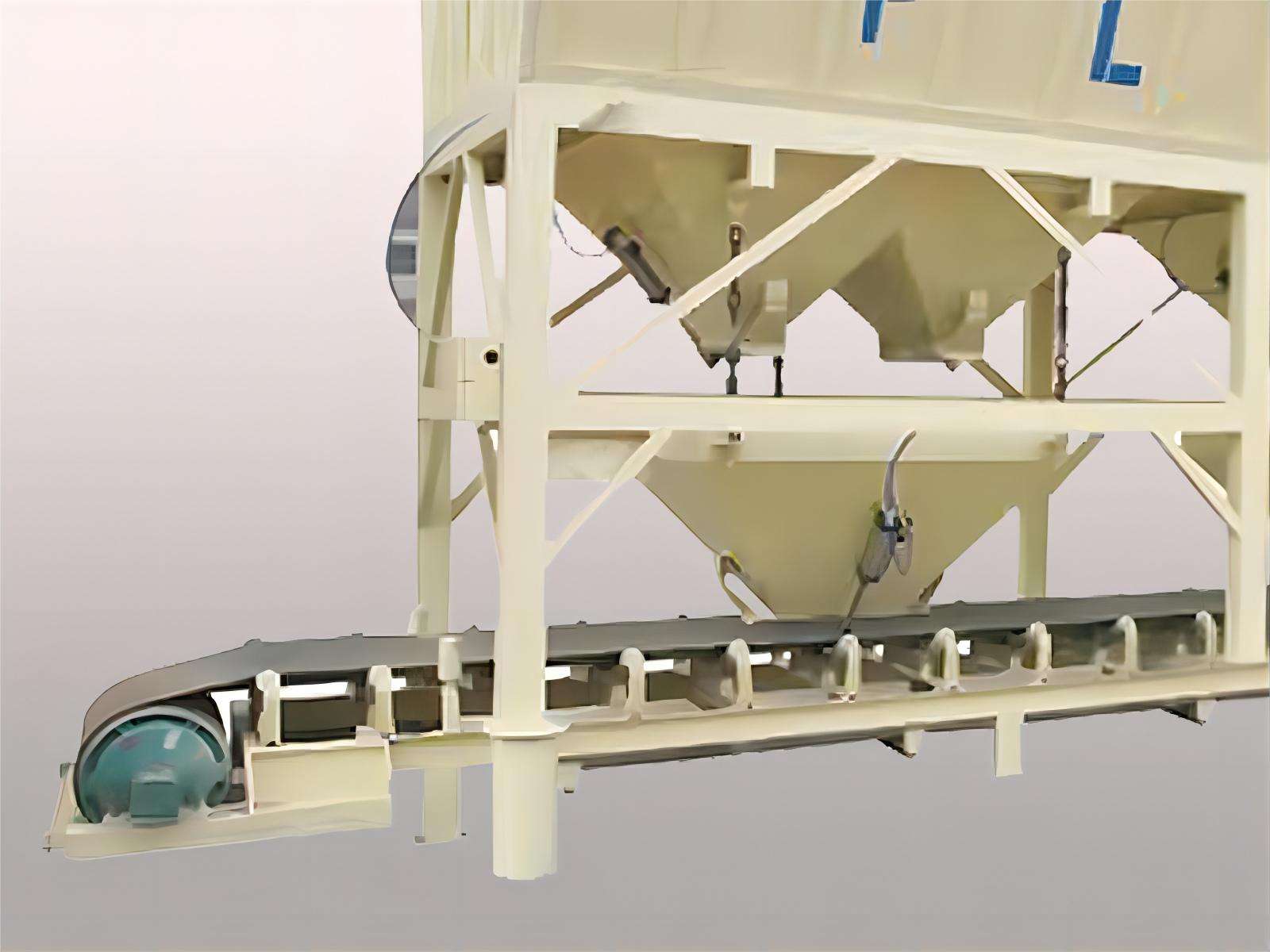

Discharge Belt

1.Compact connection, reduce failures and ensure construction safety.
2.Durable, not easy to break, and accurate aggregate transmission.

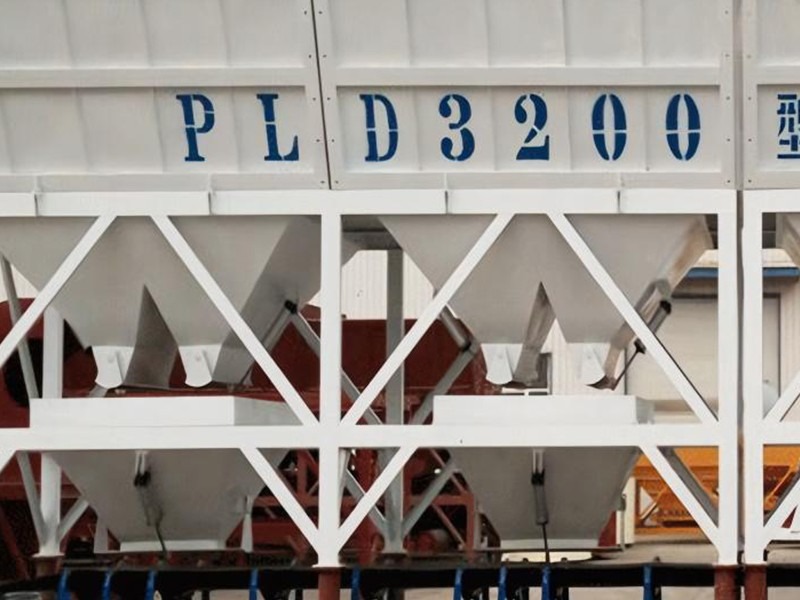

Discharge Hole

1.Equipped with 1 or 2 discharge hole, the discharging is convenient and fast.
2.The air cylinders control the discharge gate switch according to the command of the control center.

Penumatic Weighing Batching Machine

Advantage


Service

Penumatic Weighing Batching Machine

Pre-sale Services

  1. Quick response.
  2. Provide detailed quotation.
  3. Provide scheme design and site planning.
  4. Accept customer's visit.

On-sale Services

1. If necessary, send technicians to the site for installation and commissioning.
2. Provide complete technical information.
3. Free training of operators.

Penumatic Weighing Batching Machine
Penumatic Weighing Batching Machine

After-sale Services

  1. One year warranty for mixing equipment, two years warranty for core electrical appliances, free accessories for quality problems during the warranty period, except for wearing parts.
  2. Make regular remote visits.
  3. Lifelong after-sales technical support service.

Customer Visits


Delivery


Application

Model Productivity Storage Hopper Power
PLD1600-3 80m3/hr 8m3 5*4kw
PLD1600-4 80m3/hr 8m3 5*4kw
PLD2400-3 120m3/hr 8.4m3 15kw
PLD2400-4 120m3/hr 8.4m3 15kw
PLD3200-4 160m3/hr 20m3 15kw
PLD4800-4 220m3/hr 25m3 22kw
