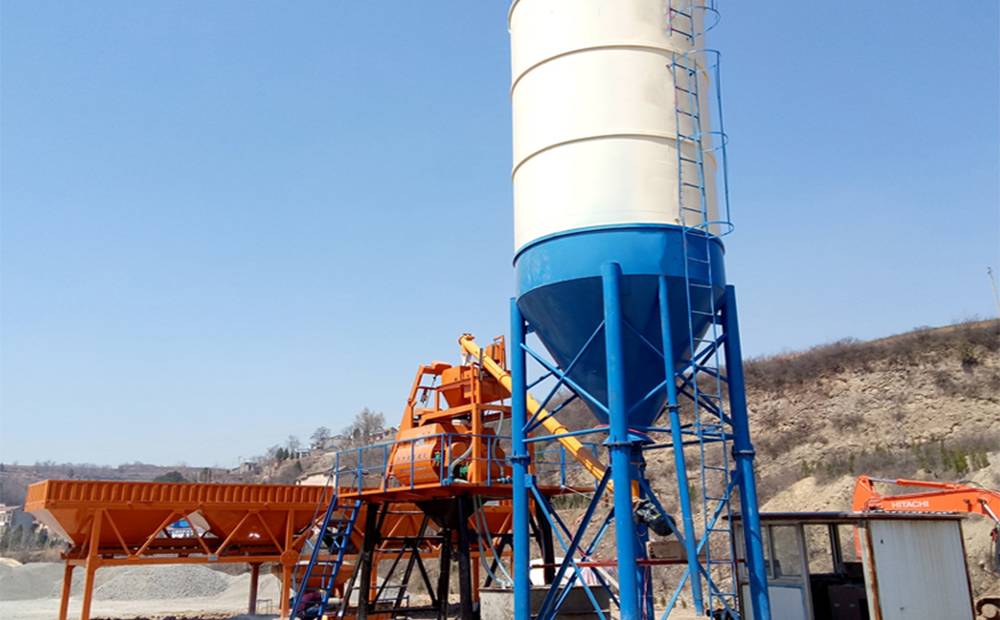

Hot Concrete Mixing Equipment HZS50 Concrete Batching Plant In Congo
Good news, a set of HZS50 concrete batching plant exported to Congo in May 2022!
Brief description
The customer has previously purchased a JS500 concrete mixer from ZhuCheng and needs to purchase another JS750 or JS1000 concrete mixer due to new project requirements. He first looked at a second-hand equipment from 2019, but after comprehensive comparison and consideration of the actual situation, decided to use the new equipment HZS50 concrete mixing plant. Due to environmental factors, the equipment cannot be too high. We suggested that the customer excavate the channel and choose low support legs. At the same time, it is recommended that he use belt feeding to reduce failure rates and investment costs. The customer agreed with our proposal and finally purchased a JS1000 concrete mixer and cement silo.
| Model | HZS50 |
| Capacity | 50m3/h |
| Discharge Volume | 1000L |
| Charge Volume | 1600L |
| Loading type | Bucket |
| Mixing blade speed | 25r/min |
| Mixing blade number | 7 x 2 |
| Mixer motor power | 37kw |
| Hoist Power | 11kw |
| Water Pump Power | 2.2kw |
| Lifting speed of hopper | 36m/min |
Advantages of HZS50 concrete mixing plant
1. Small Footprint and Easy Installation
The hopper concrete mixing plant typically adopts a modular design, making its footprint relatively small and the installation process more convenient. This design not only saves space but also enhances the station's adaptability to various complex environments, enabling it to be quickly deployed.
2. Simple Operation and High Automation
The hopper concrete mixing station is equipped with an advanced control system that can automate the production process. This significantly reduces manual intervention and increases production efficiency. Additionally, the operation interface of the mixing station is usually designed to be intuitive and easy to understand, allowing operators to quickly grasp and become proficient.
