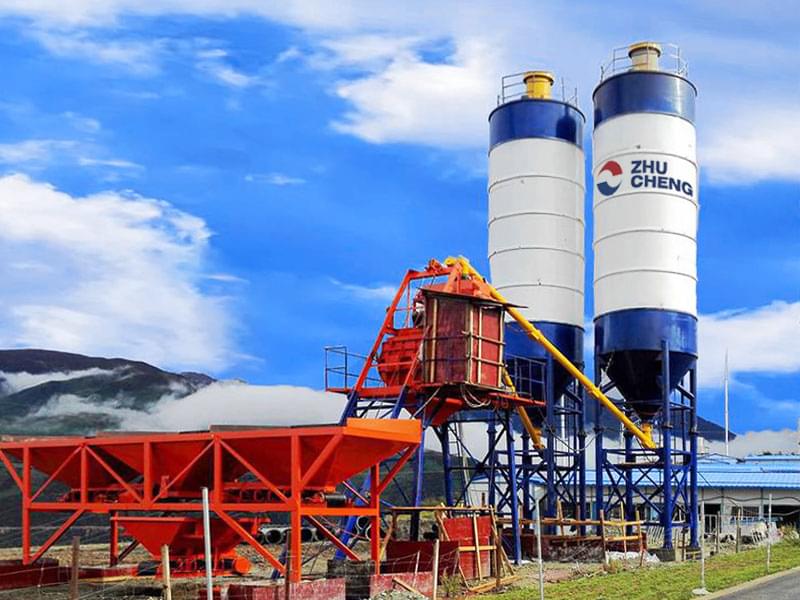

HZS75 Concrete Batching Plant In Philippines

Good news, a set of HZS75 concrete batching plantwas exported to Philippines in May 2022!

Brief description

The customer has previously customized a JS750 concrete mixer and has also ordered our accessories in the future. We have been in contact for several years. Due to the project requirements, the customer needed to purchase a HZS75 concrete mixing plant to supplement the production capacity. According to the requirements of the customer, we increased the speed of the mixer, increased the motor power and so on. Because the customer required more accessory switches, we recommended the customer to use semi-automatic centralized control, and the customer adopted the advice.Finally, the customer requested remote controller control function. After communicating with the electrical engineer, we informed the customer that it could be achieved, and we suggested using an integrated controller for the customer. Finally, a consensus was reached and the transaction was successfully completed.

ModelHZS75
Capacity75m3/h
Discharge Volume1500L
Charge Volume2400L
Loading typeBucket
Mixing blade speed30r/min
Mixing blade number7 x 2pcs
Mixer motor power2*33kw
Hoist Power11kw
Water Pump Power2.2kw
Lifting speed of hopper40m/min

Advantages of HZS75 Concrete Batching Plant

1.Using two-axis mixing, strong mixing capacity, high mixing efficiency, low energy consumption.

2. It is easy, simple and convenient to install,small layout, high weighing accuracy and easy operation.
