CM350 Mini Portable Concrete Mixer

  • Power Supply: Diesel/Gasoline/Electric
  • Drum Capacity:350L
  • Mixing Capacity:280L
  • Productivity:4~5m³/h
  • Voltage:380V, 50/60Hz, 220V, 440V, can be customized
  • Power:6-10HP or 3KW
  • Application : Construction projects, buildings, roads, bridge projects, airport, water projects and concrete prefabrication factory, etc.
What's AppSend InquirySend Emails
  • Product Details
  • Parameters

Introduction

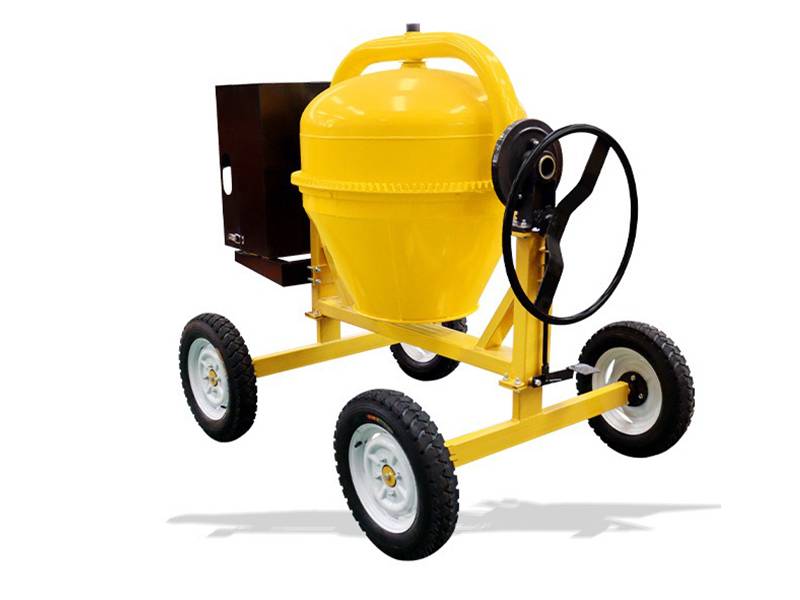

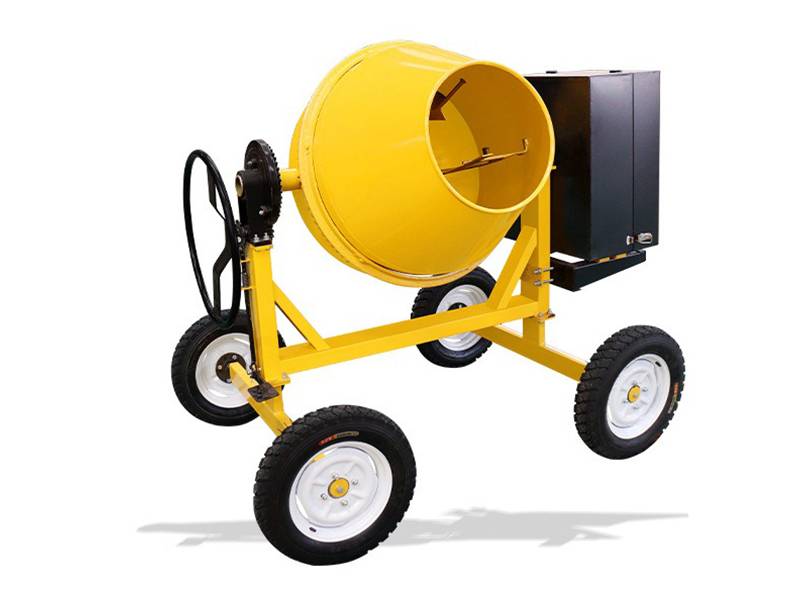

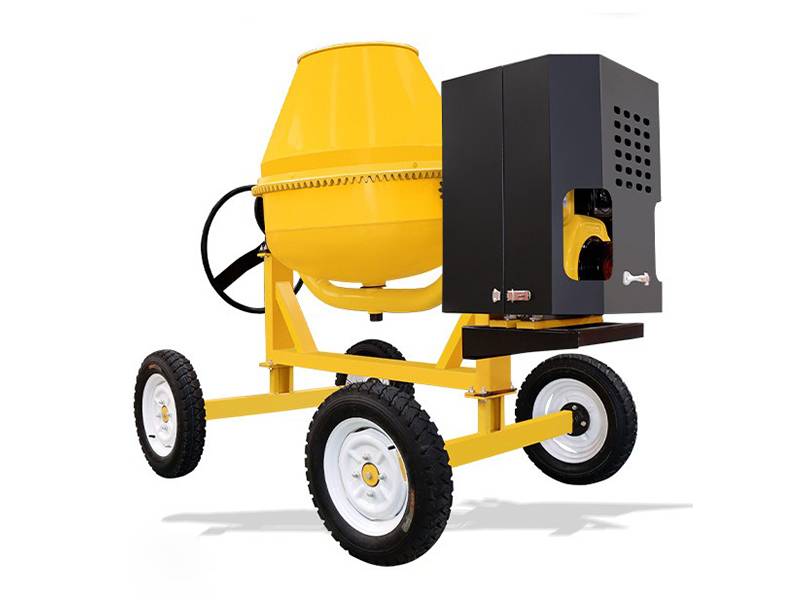

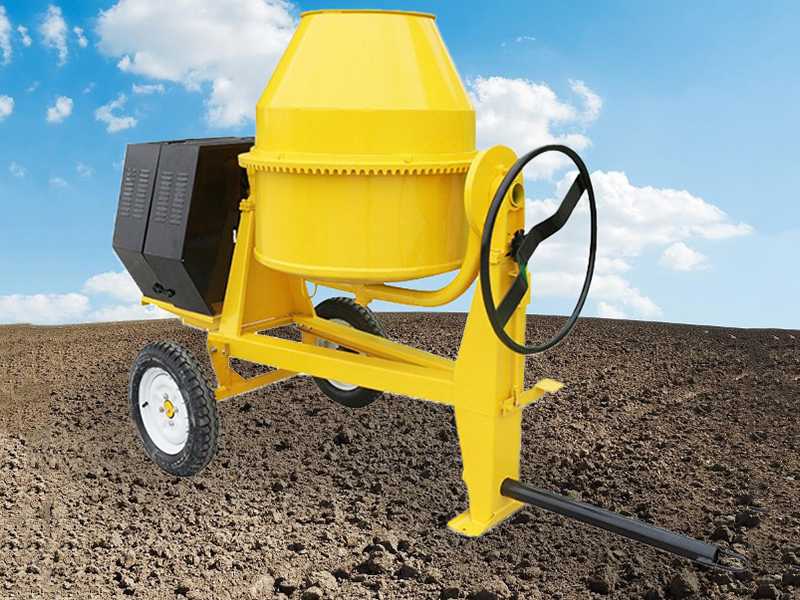

CM350 Mini Portable Concrete Mixer

CM350 mini portable concrete mixer rotates forward to stir and reverse to discharge. Each drum can mix 280L of concrete, and can produce 4-5 cubic meters per hour. Equipped with two or four wheels, it is easy to move. This mixer can be made into air-cooled diesel engine, water-cooled diesel engine, gasoline engine and electric motor drive according to customer's needs.


Main Details

CM350 Mini Portable Concrete Mixer

Thickened Barrel Wall

Thick steel plate is adopted, which has strong bearing capacity, strong stirring force and is not easy to deform.


All Copper Durable Motor

Copper core rotor, providing sufficient power, lasting work, and not easy to burn at high temperature.

CM350 Mini Portable Concrete Mixer

CM350 Mini Portable Concrete Mixer

Gear Rotation

Stable performance, strong practicability and not easy to derail. U-shaped tube integrated punching structure. The gears are engaged, making less noise and smoother.

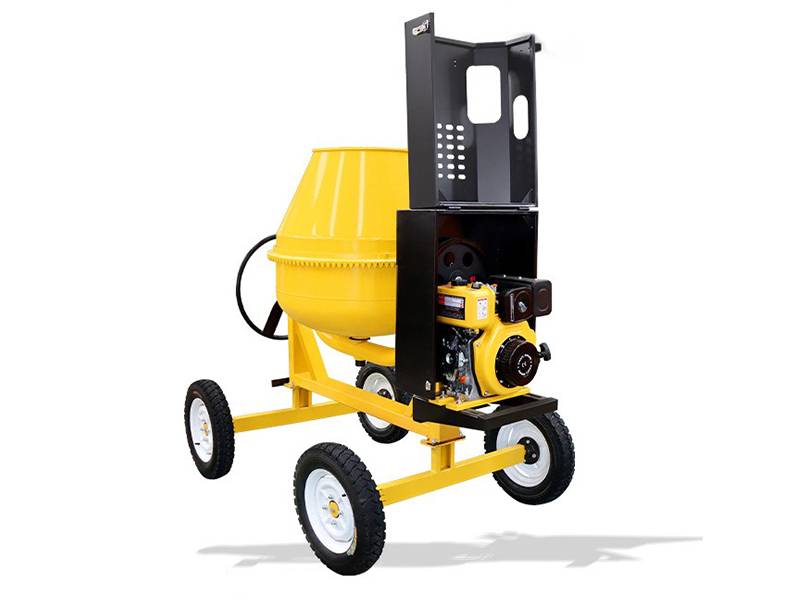

Diesel Power

Stable performance, powerful power and low fuel consumption.

CM350 Mini Portable Concrete Mixer

CM350 Mini Portable Concrete Mixer

Control Handle & Walking Wheels

It is convenient to rotate the feeding and discharging, and to fix the inclined hopper by itself. Big casters, easy to move, easy to use and good bearing capacity.


Advantages


Service

CM350 Mini Portable Concrete Mixer

Pre-sale Services

  1. Quick response.
  2. Provide detailed quotation.
  3. Provide scheme design and site planning.
  4. Accept customer's visit.

On-sale Services

1. If necessary, send technicians to the site for installation and commissioning.
2. Provide complete technical information.
3. Free training of operators.

CM350 Mini Portable Concrete Mixer
CM350 Mini Portable Concrete Mixer

After-sale Services

  1. One year warranty for mixing equipment, two years warranty for core electrical appliances, free accessories for quality problems during the warranty period, except for wearing parts.
  2. Make regular remote visits.
  3. Lifelong after-sales technical support service.

Customer Visits


Delivery


Application

Model CM350-2A/2C CM350-4A/4C
Drum Capacity 350L 350L
Mixing Capacity 280L 280L
Productivity 4~5m³/h 4~5m³/h
Bags of Cement
Per Batch
1 Bag Cement(50kg/bag)
Drum Rotation Speed 25-30rpm 25-30rpm
Upper Drum Thickness 3mm 3mm
Bottom Drum Thickness 3mm 3mm
Mixing Drum Size φ800×900mm
Tyre Size and Number 2×(4.00-12) 4×(4.00-12)
Power Option Air-cooledDiesel Engine 178FS(6HP)
Air-cooled Diesel Engine 186FS(10HP)
Water-cooled Diesel Engine R175(6HP)
Water-cooled Diesel Engine R180(8HP)
Honda Gasoline Engine GX270(9HP)
Electric Motor 3KW
Total Weight 260kg 280kg
Overall Size(LxWxH) 1960*1100*1700mm
20GP 20sets
40HQ 40sets
