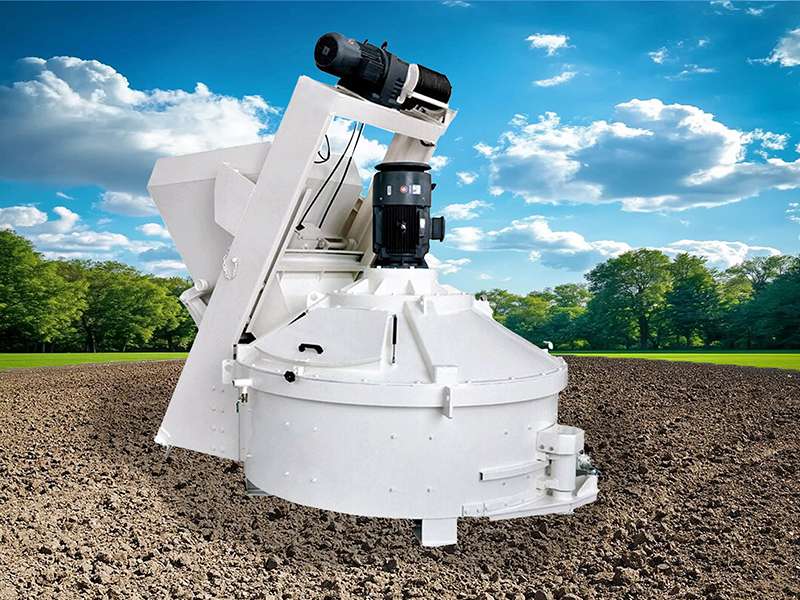

CLMP1500 Planetary Vertical Shaft Concrete Mixer

  • Productivity:75-90m3/h
  • Discharge Quality : 3600kg
  • Voltage:380V, 50/60Hz, 220V, 440V, can be customized
  • Power:76kw
  • Mixing time:60s
  • Reducer Rotation: 25r/min
  • Application : Construction projects, buildings, roads, bridge projects, airport, water projects and concrete prefabrication factory, etc.
What's AppSend InquirySend Emails
  • Product Details
  • Parameters

Introduction

CLMP500 Planetary Vertical Shaft Concrete Mixer

Planetary concrete mixer is suitable for mixing all high-quality concrete (hard, semi-hard and plastic concrete) and achieving high homogeneity in a short time. It can also be used in glass, ceramics, refractory and other industries.


Main Details

500L Planetary Concrete Mixer

Mixing System

  1. Continuous stirring track and high
    mixing efficiency.
  2. Reduce the wear of lining plates and
    blades.
  3. The bottom scraper and the side
    scraper have automatic cleaning function.

Discharging System

  1. Pneumatic or hydraulic can be selected.
  2. The discharge door is equipped with a
    special sealing strip, which is reliable in
    sealing.
  3. Manual unloading device, which can
    manually unload the materials in the mixing barrel in case of emergency.
500L Planetary Concrete Mixer

500L Planetary Concrete Mixer

Observation Port

Convenient maintenance, you can observe
the situation of mixing materials when the
mixer works normally under the state of
uninterrupted power supply.


Transmission

  1. Adopt large module gear, with high
    transmission reliability, strong stability
    and long service life.
  2. Simple structure, more reasonable
    stress, less noise and more convenient
    maintenance.
500L Planetary Concrete Mixer

500L Planetary Concrete Mixer

Injector

The nozzle adopts spiral solid conical nozzle, which has fine and uniform atomization effect, large coverage area and uniform mixing of materials.


360° Mixing Without Dead Angle

  1. The trajectory of the mixing arm is more complex and dense, and there is no dead angle in 360 mixing, so the mixing of materials is more sufficient.
  2. Strong power, low noise, reducing energy consumption on the premise of mixing.
500L Planetary Concrete Mixer

Advantages


Service

JDC500 Single Shaft Concrete Mixer

Pre-sale Services

  1. Quick response.
  2. Provide detailed quotation.
  3. Provide scheme design and site planning.
  4. Accept customer's visit.

On-sale Services

1. If necessary, send technicians to the site for installation and commissioning.
2. Provide complete technical information.
3. Free training of operators.

JDC500 Single Shaft Concrete Mixer
JDC500 Single Shaft Concrete Mixer

After-sale Services

  1. One year warranty for mixing equipment, two years warranty for core electrical appliances, free accessories for quality problems during the warranty period, except for wearing parts.
  2. Make regular remote visits.
  3. Lifelong after-sales technical support service.

Customer Visits


Delivery


Application

Model CLMP1500
Discharge Capacity 1500L
Charge Capacity 2250L
Discharge Quality 3600kg
Mixing Arm 6pcs
Hydraulic Discharge Power 3kw
Mixing Motor Power 55kw
Lifting Motor Power 15kw
Water Pump Motor 3kw
Reducer rotation 16r/min
Revolving of reducer 25r/min
Total Weight 7700kg
Overall Dimension 3230*2902*2470mm
