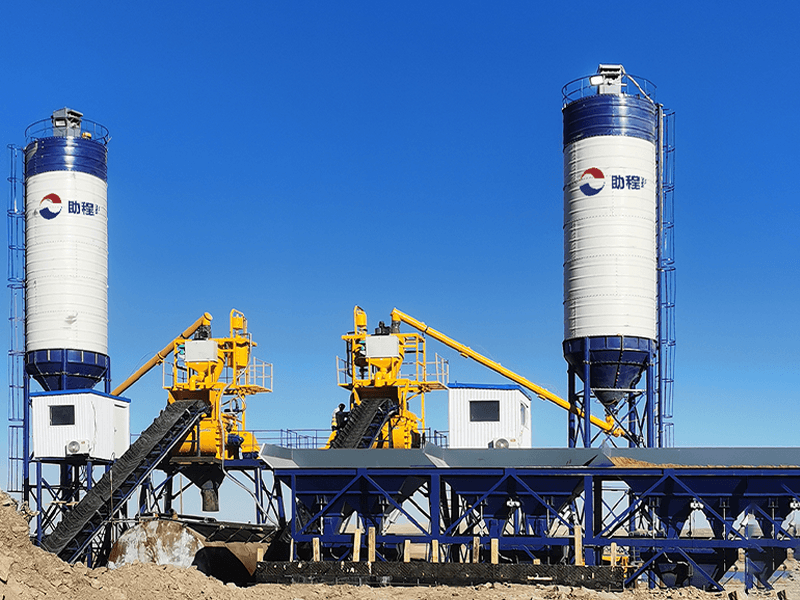

Installation Site of Double Line HZS90 Belt Concrete Mixing Plant in Kazakhstan

Recently, our double HZS90 stationary belt concrete batching plant was successfully delivered to Kazakhstan. And the installation of belt concrete mixing station is coming to an end.

Why customer choose the double-line HZS90 belt concrete mixing plant

In the process of communication with our customer, we learned that customers have a large demand for concrete, and some projects are also in a hurry, and the site area is large, so we recommended HZS90 double-line concrete mixing station to Kazakhstan customer. Double line HZS90 concrete mixing plant covers an area of about 20-25 mu. The theoretical productivity of this series of concrete mixing equipment is 180 m/h, and there are two unloading parking spaces, which can meet the feeding operation of two mixing trucks at the same time.

Configuration of double-line HZS90 belt concrete mixing plant

The configuration of double-line hzs 90 concrete mixing station mainly includes the following aspects:

1. Weighing system:

The main configuration includes two units PLD2400 batching machine, and the aggregate bin is divided into three identical bins, each with a volume of about 16m³, and each aggregate bin is provided with two discharge doors to realize coarse weighing and fine weighing. The sensors and butterfly valves of water, cement, fly ash and admixture metering system should be of excellent quality and high metering accuracy.

2. Conveying system:

It is mainly equipped with inclined belt conveyor and screw conveyor. The length of the belt conveyor can be configured according to the user's requirements, with a weight-dropping tensioning device. The belt conveyor is sealed with a 3㎜ thick glass color steel plate, and there are maintenance walkways on both sides of the belt conveyor, with sweeper at the head and sweeper at the tail. Screw conveyor is 273 * 10m, and the productivity of screw conveyor is 110t/h.

3. Mixing system:

It is mainly equipped with two sets JS1500 concrete mixing machines. The main steel structure is made of large thick steel plate, with good sealing performance at the shaft end, and various stirring knives are designed to make the concrete mix more evenly.

4. Storage system:

It is mainly configured as two units 100t cement silos, and the top of which must be equipped with dust removal equipment to ensure that the mixing station meets the national environmental protection requirements.

5. Electric control system:

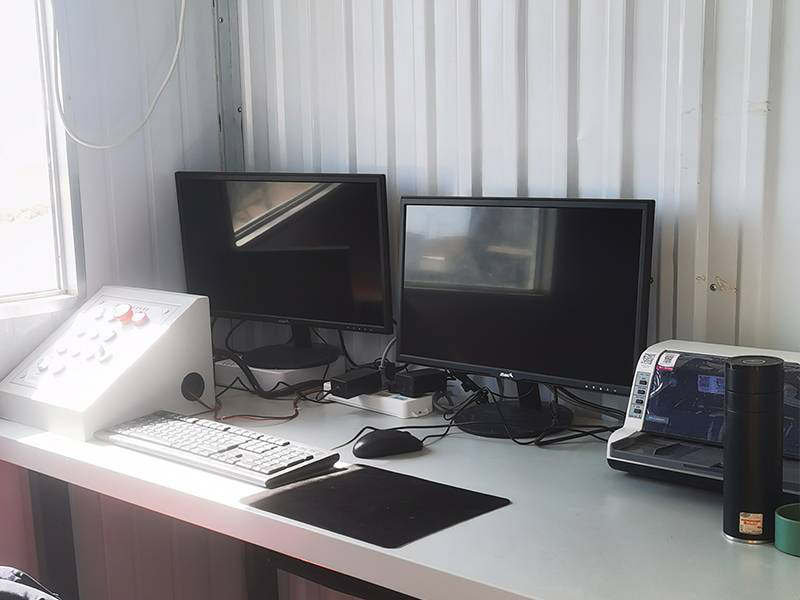

The electric control system of double line HZS90 concrete mixing station is mostly configured as a fully automatic dual-machine control system, which is mainly composed of electronic weighing, programmable controller, peripheral execution devices and detection devices, TV monitoring and other parts, including automatic production control software and data management software.

The advantages of the double-line HZS90 belt concrete mixing plant

The advantages of double-line mixing station are mainly reflected in improving production efficiency, reducing operating costs, enhancing market competitiveness and meeting market demand. ‌

1. Double-line cement mixing station can produce multiple batches of concrete at the same time by adopting double-line design, thus significantly improving production efficiency. For example, the theoretical production capacity of HZS90 concrete mixing plant is as high as 90×2=180 m3/h, which ensures efficient concrete supply for large-scale projects. In addition, the HZS90 concrete mixing station with double-line configuration can complete more concrete production tasks in the same time, further improve the overall production efficiency, meet the large demand of construction projects, and ensure that the project is completed on time.

2. In terms of reducing operating costs, the double-line concrete mixing station effectively reduces energy costs by improving production efficiency and reducing equipment running time. At the same time, the two-line configuration can keep the other production line running when one production line fails, which reduces the risk of production interruption caused by equipment failure, thus reducing the maintenance cost and downtime. In addition, the double-line mixing station can operate multiple production links at the same time, reducing manual intervention and manpower demand, helping enterprises to optimize the allocation of human resources and reduce labor costs.

3. In terms of enhancing market competitiveness, the efficient and reliable production capacity of double-line mixing station enables enterprises to better control costs and achieve sustainable development while meeting customer needs, thus improving their market competitiveness.

4. Finally, the double-line concrete batching plant can meet the market demand quickly and efficiently, and provide a strong guarantee for the smooth completion of construction projects. This configuration helps enterprises to stand out in the highly competitive market and win the trust and support of more customers.

To sum up, the double-line mixing station has become an important choice for modern concrete production through its efficient production capacity, reduced operating costs and enhanced market competitiveness.
