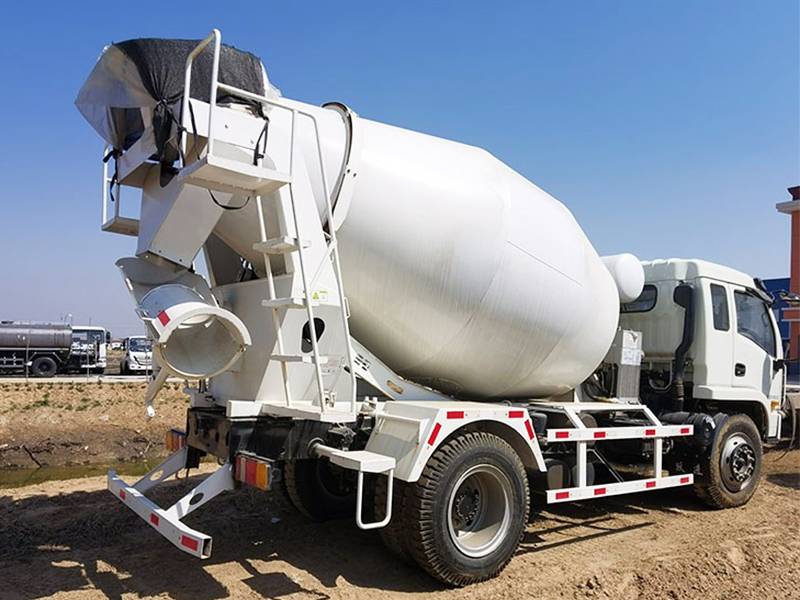

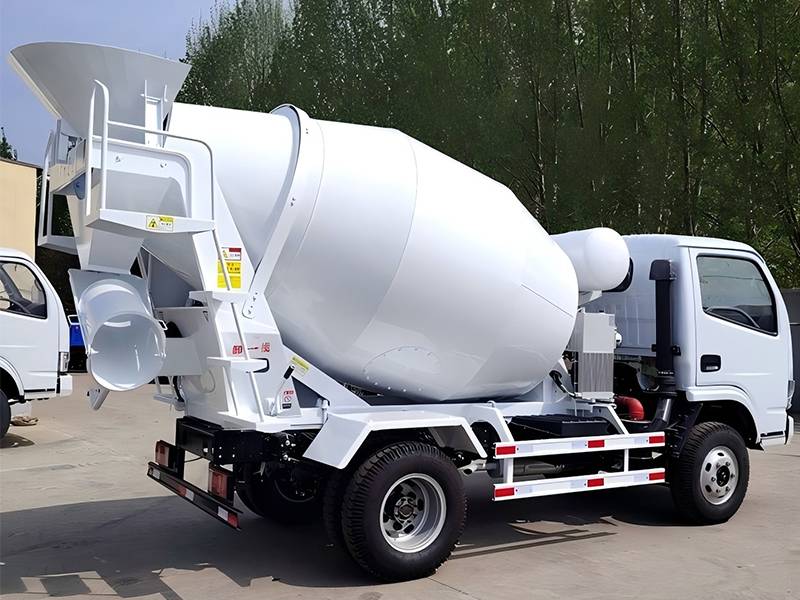

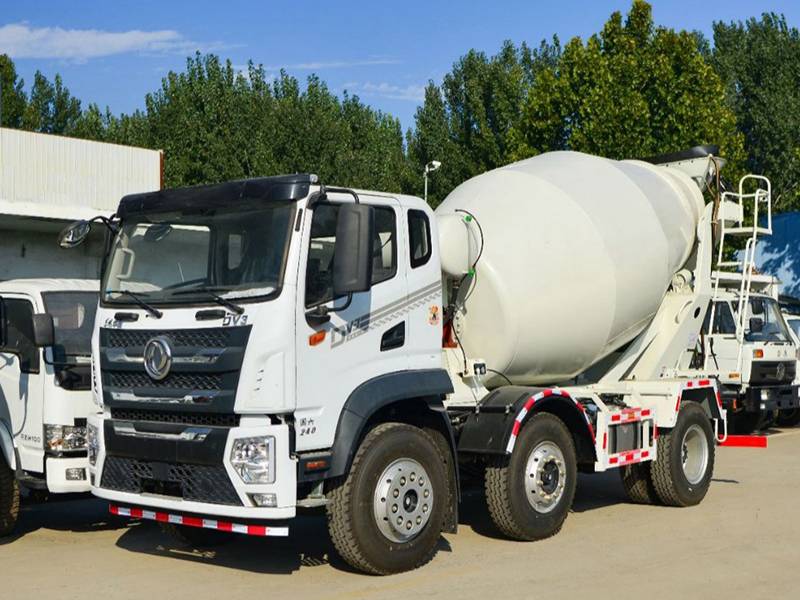

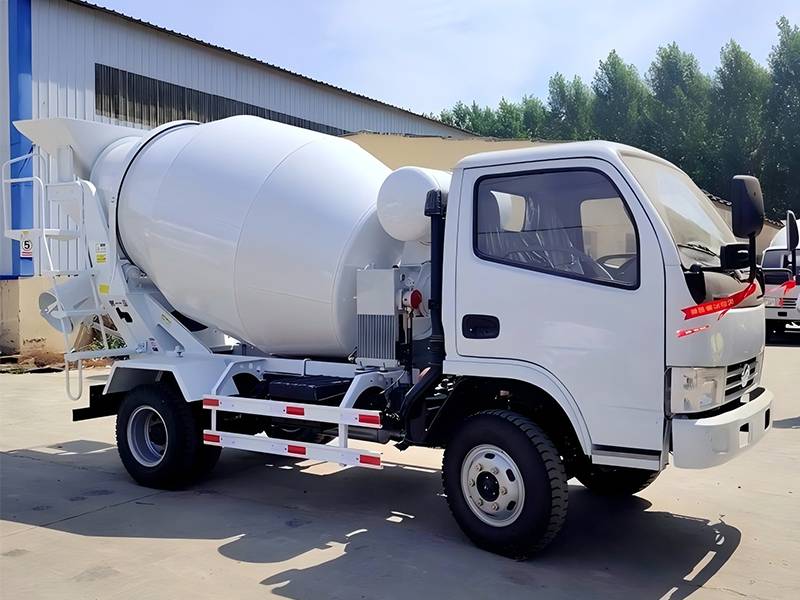

5 Cubic Meters Mobile Concrete Mixer Truck

  • Tank Volume: 5m3
  • Fuel Type:Diesel oil
  • Engine:YUCHAI
  • Inclined Angle:13°
  • Max. Driving Speed:80km/h
  • Climbing Ability : 7°-20°
  • Application : Construction projects, buildings, roads, bridge projects, airport, water projects and concrete prefabrication factory, etc.
What's AppSend InquirySend Emails
  • Product Details
  • Parameters

Introduction

5 Cubic Meters Mobile Concrete Mixer Truck

The concrete mixer trucks are made to mix concrete and transport concrete to the construction site. During transportation, the mixing drum will always rotate to ensure that the concrete carried will not solidify. It consists of chassis, concrete tank, feeding and discharging devices, hydraulic transmission system and cooling system. The volume of the mixer truck is usually between 3 and 16 cubic meters.


Main Details

5 Cubic Meters Mobile Concrete Mixer Truck

Hydraulic Motor

Imported tank rotating motor has large torque and is not easy to leak oil.


Reducer

Brand reducer, effectively reduce the speed.

5 Cubic Meters Mobile Concrete Mixer Truck

5 Cubic Meters Mobile Concrete Mixer Truck

Slewing Support

Closed screw, to avoid sand and dust and other debris from entering.


Heat-removal System

Prevent the hydraulic oil tank from overheating.

5 Cubic Meters Mobile Concrete Mixer Truck

5 Cubic Meters Mobile Concrete Mixer Truck

Pressure Water Tank

Equipped with pressure water tank, it can maintain constant pressure, stabilize pressure, replenish water and overflow, and clean the tank and body.


Tail Discharge Chute

The tail discharge chute is designed to be spliced and folded, with large-diameter notch, which makes the discharge convenient and fast.

5 Cubic Meters Mobile Concrete Mixer Truck

5 Cubic Meters Mobile Concrete Mixer Truck

Thickened Tank

High strength tank, low wear, easy maintenance, durable and not easy to rust.


Driving Cab

1. Open and close the door at 90 degrees, which is convenient for entry and exit.
2. The whole vehicle is equipped with a camera to monitor and master the driving condition in real time.

5 Cubic Meters Mobile Concrete Mixer Truck

Advantages


Service

HZS75 75m3/h Bucket Concrete Batching Plant

Pre-sale Services

  1. Quick response.
  2. Provide detailed quotation.
  3. Provide scheme design and site planning.
  4. Accept customer's visit.

On-sale Services

1. If necessary, send technicians to the site for installation and commissioning.
2. Provide complete technical information.
3. Free training of operators.

HZS75 75m3/h Bucket Concrete Batching Plant
HZS75 75m3/h Bucket Concrete Batching Plant

After-sale Services

  1. One year warranty for mixing equipment, two years warranty for core electrical appliances, free accessories for quality problems during the warranty period, except for wearing parts.
  2. Make regular remote visits.
  3. Lifelong after-sales technical support service.

Customer Visits


Delivery


Application

Tank Volume 5m3
Fuel Type Diesel oil
Engine Yuchai power 200 horsepower
Gearbox Fashite 8th, high and low
Wheelbase (of a vehicle) 3600mm
Outer Wheel Width 2450mm
Front And Rear Bridge Front 3.6T rear reinforced 10T with differential lock
Tyre 1000R20
Drving Cab Dongfeng Brand
Remote control central lock, original air conditioner, airbag seat
Electric glass, multi-function steering wheel, central control panel+reversing image
Plunger Motor SUNNY
Plunger pump SUNNY
End Enclosure 10mm
Water Supply System Three water pipes
Water Supply Mode Atmospheric pressure
Chassis Emission Standard GB3847-2005 National VI, GB17691-2018
Radiator Hengsheng
Mixer Tank 500 high wear-resistant and high strength board
Dimension 7225*2450*3600mm
Total Weight 18000kg
