8 Cubic Meters Mobile Concrete Mixer Truck

  • Tank Volume: 8m3
  • Fuel Type:Diesel oil
  • Engine:YUNNEI
  • Inclined Angle:13°
  • Max. Driving Speed:80km/h
  • Climbing Ability : 7°-20°
  • Application : Construction projects, buildings, roads, bridge projects, airport, water projects and concrete prefabrication factory, etc.
What's AppSend InquirySend Emails
  • Product Details
  • Parameters

Introduction

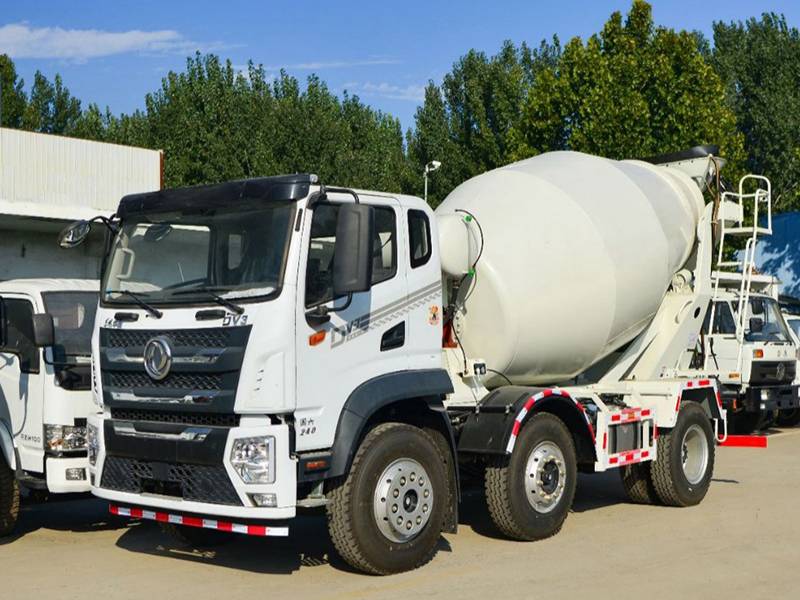

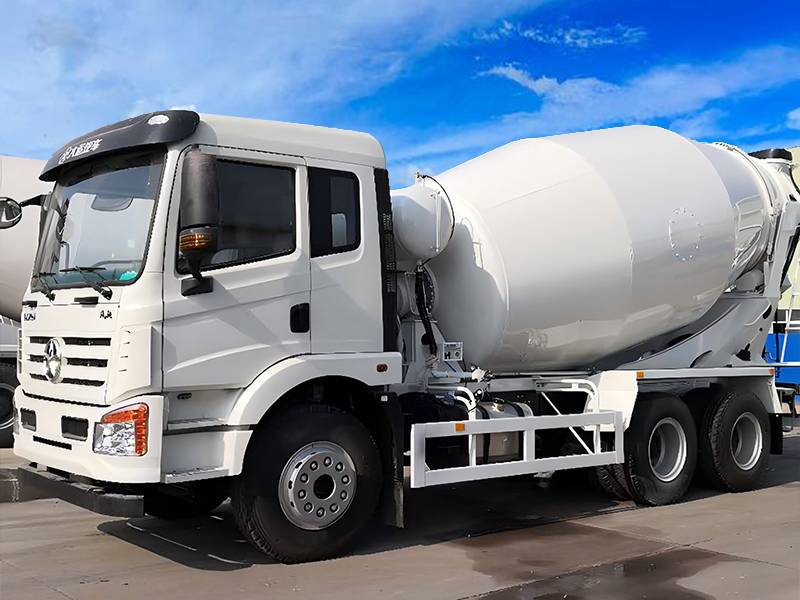

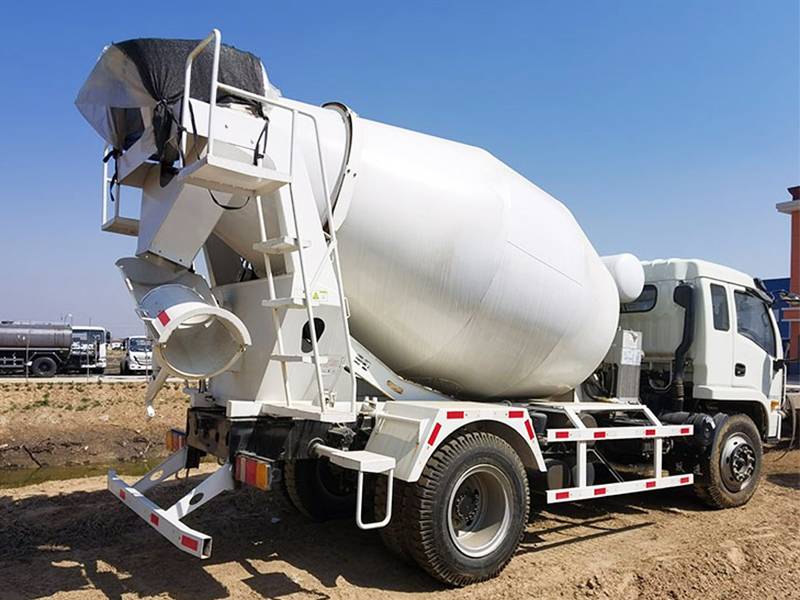

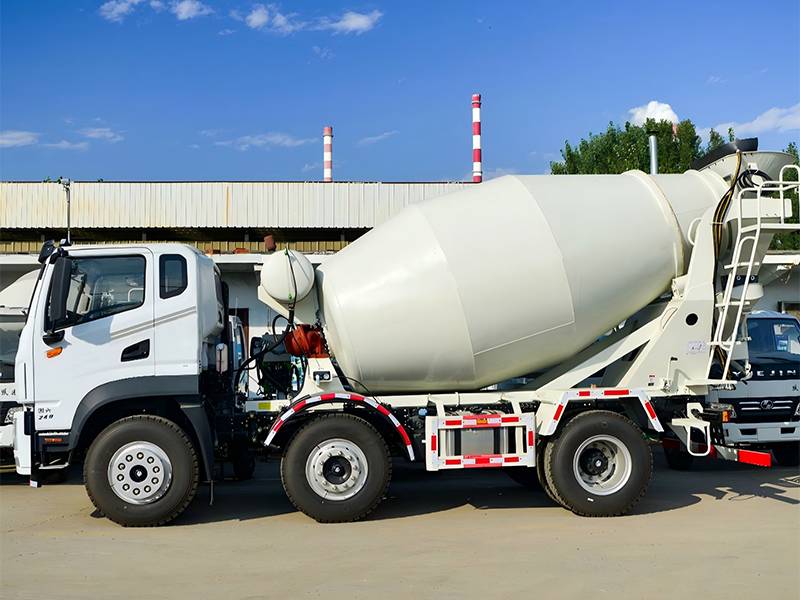

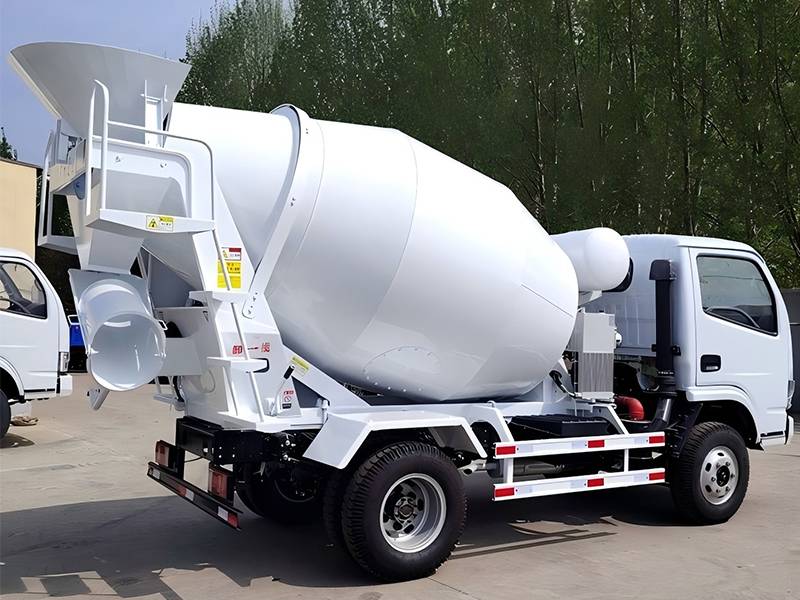

8 Cubic Meters Mobile Concrete Mixer Truck

The concrete mixer trucks are made to mix concrete and transport concrete to the construction site. During transportation, the mixing drum will always rotate to ensure that the concrete carried will not solidify. It consists of chassis, concrete tank, feeding and discharging devices, hydraulic transmission system and cooling system. The volume of the mixer truck is usually between 3 and 16 cubic meters.


Main Details

5 Cubic Meters Mobile Concrete Mixer Truck

Hydraulic Motor

Imported tank rotating motor has large torque and is not easy to leak oil.

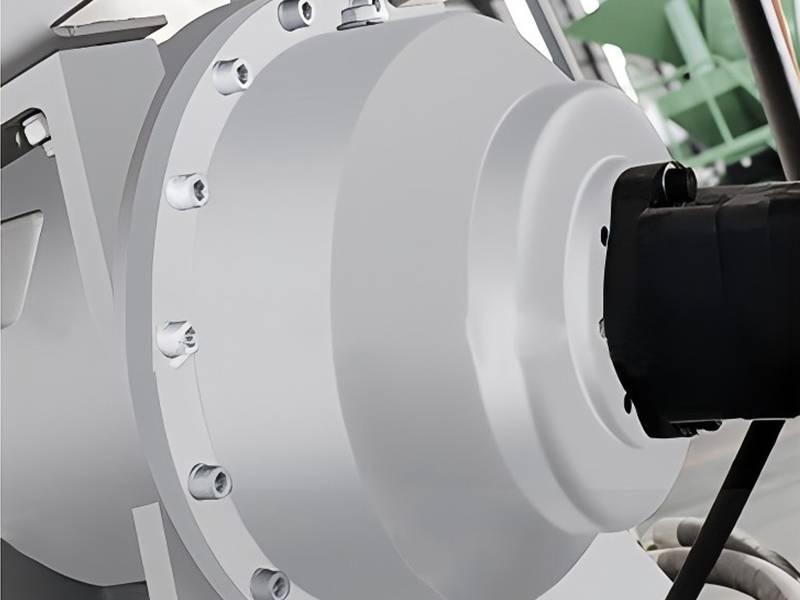

Reducer

Brand reducer, effectively reduce the speed.

5 Cubic Meters Mobile Concrete Mixer Truck

5 Cubic Meters Mobile Concrete Mixer Truck

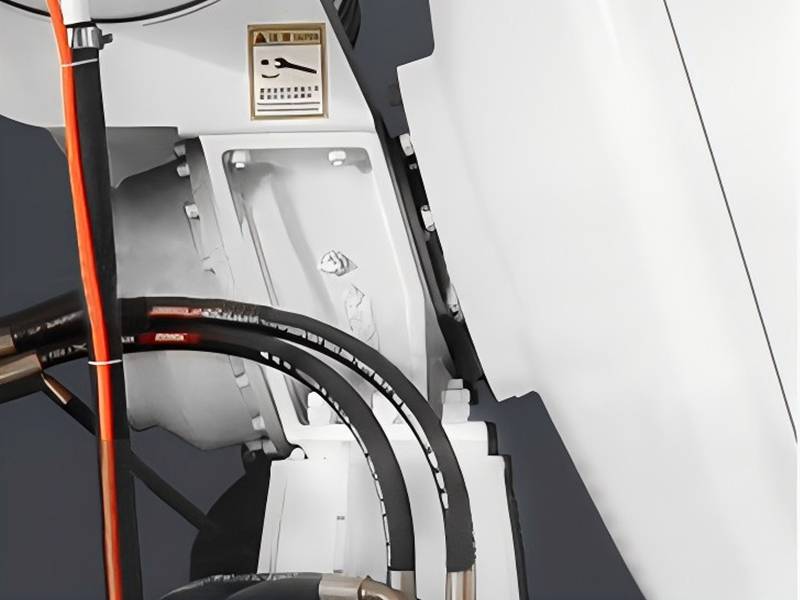

Slewing Support

Closed screw, to avoid sand and dust and other debris from entering.

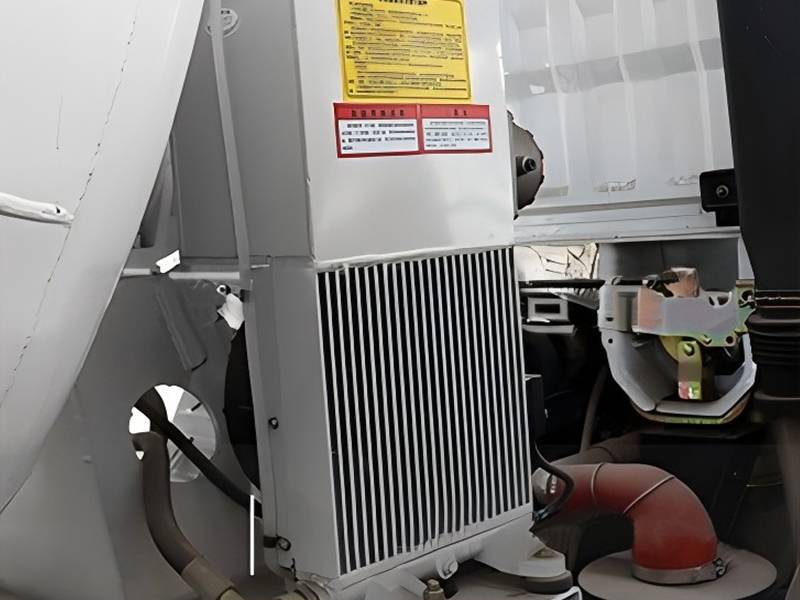

Heat-removal System

Prevent the hydraulic oil tank from overheating.

5 Cubic Meters Mobile Concrete Mixer Truck

5 Cubic Meters Mobile Concrete Mixer Truck

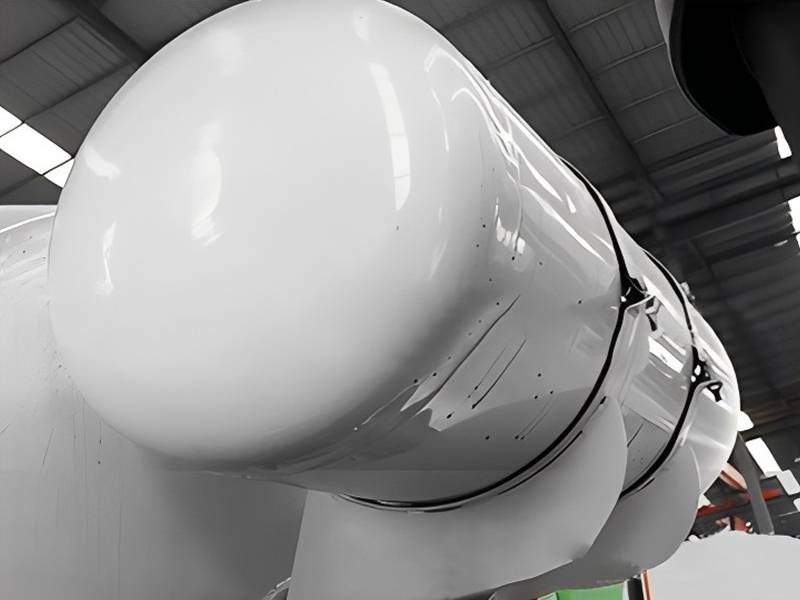

Pressure Water Tank

Equipped with pressure water tank, it can maintain constant pressure, stabilize pressure, replenish water and overflow, and clean the tank and body.

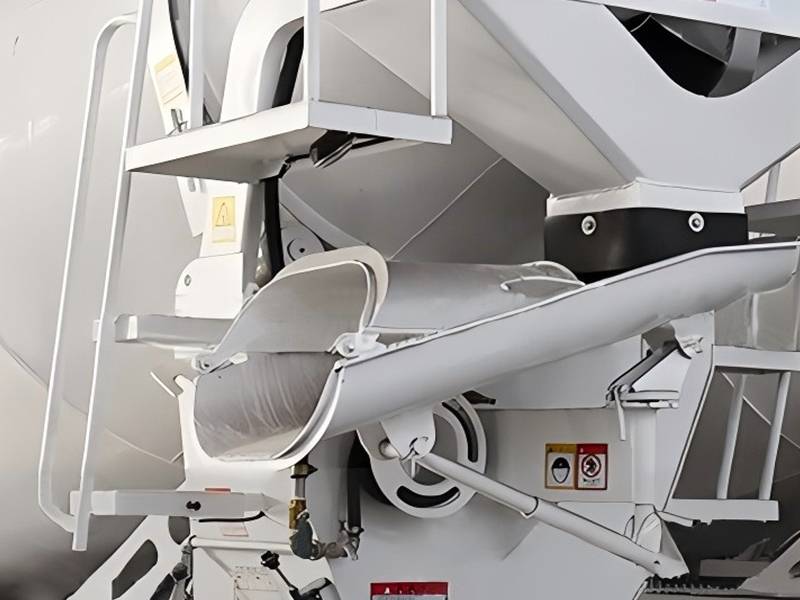

Tail Discharge Chute

The tail discharge chute is designed to be spliced and folded, with large-diameter notch, which makes the discharge convenient and fast.

5 Cubic Meters Mobile Concrete Mixer Truck

5 Cubic Meters Mobile Concrete Mixer Truck

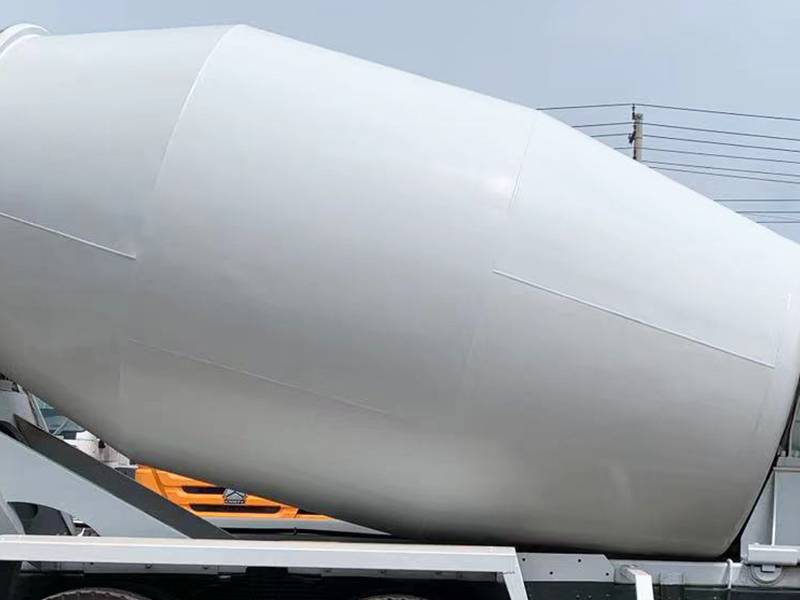

Thickened Tank

High strength tank, low wear, easy maintenance, durable and not easy to rust.

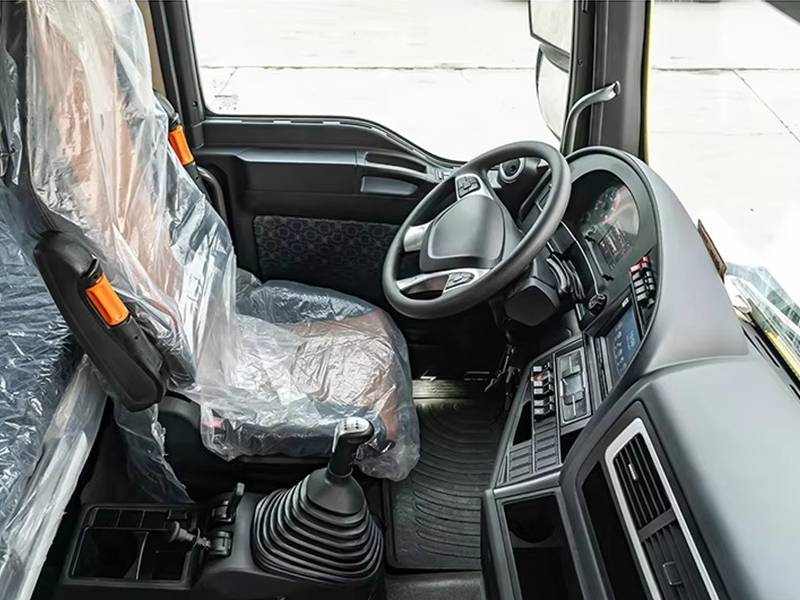

Driving Cab

1. Open and close the door at 90 degrees, which is convenient for entry and exit.
2. The whole vehicle is equipped with a camera to monitor and master the driving condition in real time.

5 Cubic Meters Mobile Concrete Mixer Truck

Advantages


Service

HZS75 75m3/h Bucket Concrete Batching Plant

Pre-sale Services

  1. Quick response.
  2. Provide detailed quotation.
  3. Provide scheme design and site planning.
  4. Accept customer's visit.

On-sale Services

1. If necessary, send technicians to the site for installation and commissioning.
2. Provide complete technical information.
3. Free training of operators.

HZS75 75m3/h Bucket Concrete Batching Plant
HZS75 75m3/h Bucket Concrete Batching Plant

After-sale Services

  1. One year warranty for mixing equipment, two years warranty for core electrical appliances, free accessories for quality problems during the warranty period, except for wearing parts.
  2. Make regular remote visits.
  3. Lifelong after-sales technical support service.

Customer Visits

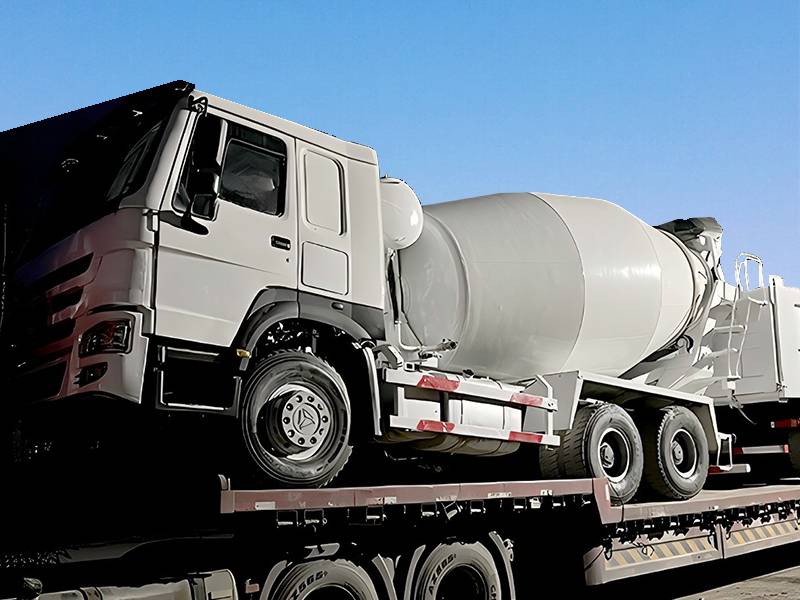

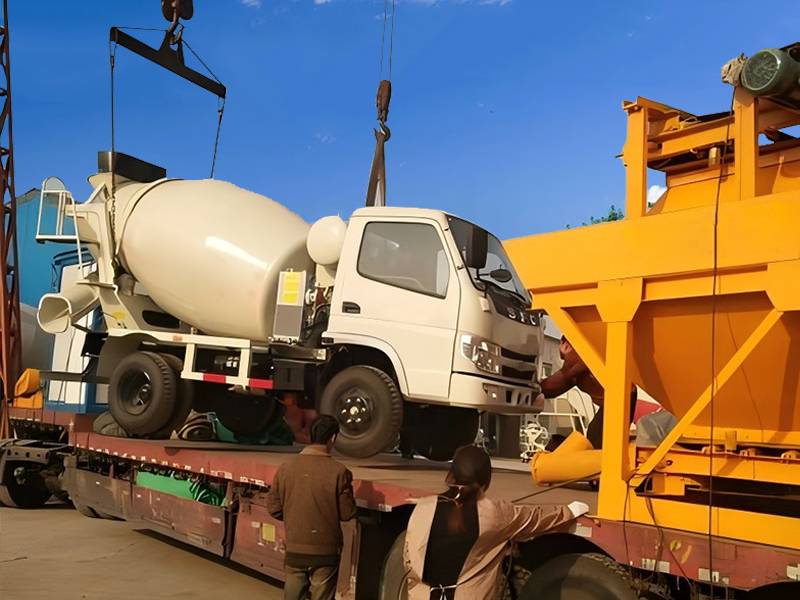

Delivery


Application

Mixing Drum Mixer Tank Volume 8m3
Inclined Angle 13°
Charge Speed ≥3m3/min
Discharge Speed ≥2m3/min
Discharge Residual Rate <1%
Chassis Chassis Model SH1042VEDCNZ1
wheelbase (of a vehicle) 3300mm
Track (front) 1650mm
Wheel Track (rear) 1650mm
Max. Driving Speed 80km/h
Gearbox Fashite
Tyre 8.25R166PR
Engine Engine Model YUNNEI
Engine Power 95kw
Emission Standard Euro 5 emission standard
Hydraulic Drive System Hydraulic Pump/ Motor SUNNY/INTER pump
Reducer RONGJIAO/KEYI
Water Supply System Water Supply System Atmospheric water supply
Water Tank Volume 400L
Whole Machine Vehicle Equipment Quality 2600kg
Maximum Loading Weight 10205kg
Total Weight 4290kg
Overall Dimension 5995*2230*2500mm
