1.5M3 Self Loading Mobile Concrete Mixer Truck

  • Output Capacity: 1.6m³ per batch
  • Engine:YUNEI/YUCHAI
  • Rotation Angle:270°
  • Gradeability:30°
  • Driving Speed:High: 0-30km/h, Low: 0-9km/h
  • Transmission : Full Hydraulic
  • Application : Construction projects, buildings, roads, bridge projects, airport, water projects and concrete prefabrication factory, etc.
What's AppSend InquirySend Emails
  • Product Details
  • Parameters

Introduction

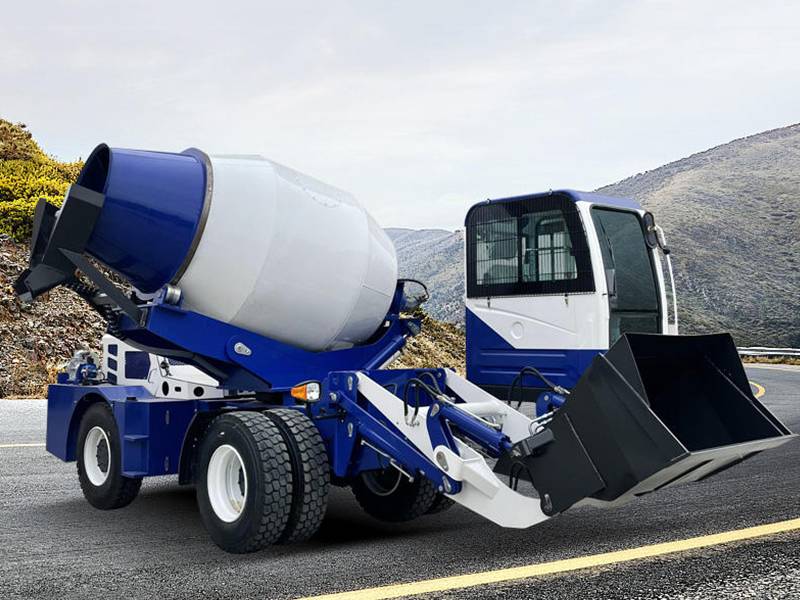

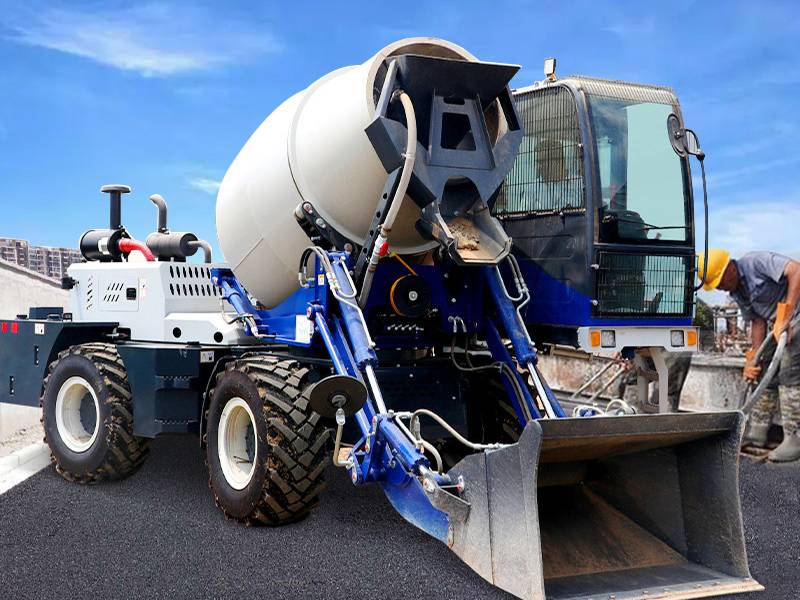

1.5M3 Self Loading Mobile Concrete Mixer Truck

Self loading concrete mixer truck is a special vehicle which integrates loading, mixing, transporting and unloading. The machine body rotates 270 degrees and travels in both directions. One vehicle can meet the needs of multiple construction sites, reducing transportation time and labor costs and improving construction efficiency.


Main Details

1.5M3 Self Loading Mobile Concrete Mixer Truck

Brand Engine

Adopt brand engines such as Yunnei and Yuchai, which have strong power, improve work efficiency and long service life.


Rotating Motor

Imported hydraulic rotary motor, high torque rotation, powerful, stable performance and no oil leakage.

1.5M3 Self Loading Mobile Concrete Mixer Truck

1.5M3 Self Loading Mobile Concrete Mixer Truck

Slewing Support

Closed screw rod, strong sealing, refusing the entry of debris such as sand and dust.


Large Capacity Water Tank

1. Enlarged water tank, automatic water filling function, can also be constructed in areas.
2. Self-contained hydraulic pump, automatic metering pumping ratio.

1.5M3 Self Loading Mobile Concrete Mixer Truck

1.5M3 Self Loading Mobile Concrete Mixer Truck

Hydrulic Cylinde

1. Imported hydraulic cylinder, smooth and flexible reciprocating motion, full of power.
2. Tank cylinder support angle is up to 20°, and the blanking speed is fast.


Manganese Steel Tank

1. Manganese steel material, machine welding, improve the service life of tank.
2. Double blade design, fast mixing, wear resistance and durability, uniform discharge.

1.5M3 Self Loading Mobile Concrete Mixer Truck

1.5M3 Self Loading Mobile Concrete Mixer Truck

Driving Cab

1. Humanized design has broad vision, frame structure, good sound insulation and high safety.
2. Front and right camera, large display screen, accurate and simple operation.


Anti-skid Tire

1. Adopt anti-skid and wear-resistant tires, with high safety factor.
2. Strong grip on the ground, stable climbing, not afraid of all kinds of complex terrain.

1.5M3 Self Loading Mobile Concrete Mixer Truck

Advantages


Service

HZS75 75m3/h Bucket Concrete Batching Plant

Pre-sale Services

  1. Quick response.
  2. Provide detailed quotation.
  3. Provide scheme design and site planning.
  4. Accept customer's visit.

On-sale Services

1. If necessary, send technicians to the site for installation and commissioning.
2. Provide complete technical information.
3. Free training of operators.

HZS75 75m3/h Bucket Concrete Batching Plant
HZS75 75m3/h Bucket Concrete Batching Plant

After-sale Services

  1. One year warranty for mixing equipment, two years warranty for core electrical appliances, free accessories for quality problems during the warranty period, except for wearing parts.
  2. Make regular remote visits.
  3. Lifelong after-sales technical support service.

Customer Visits


Delivery


Application

Model ZC-1.6
Mixing
System
Output Capacity 1.6m³ per batch
Rotation Angle 270°
Mixer Drum Angle 16 °
Loader control Hydraulic 4 way stick
Swing Reducer Customized by ZHUCHENG
Water Tank Volume 370 L
Engine Brand YUNNEI
Rated Power/RPM 60kw/2200rpm
Chassis Total Weight 5500kg
Driver Type 4*4
Chassis Articulated Chassis
Wheel Base 1960 mm
Tyre 20.5/70-16
Transmission Full Hydraulic
Speed High: 0-30km/h
Low: 0-9km/h
Gradeability 30°
Overall Size 6254*2200*2892mm
