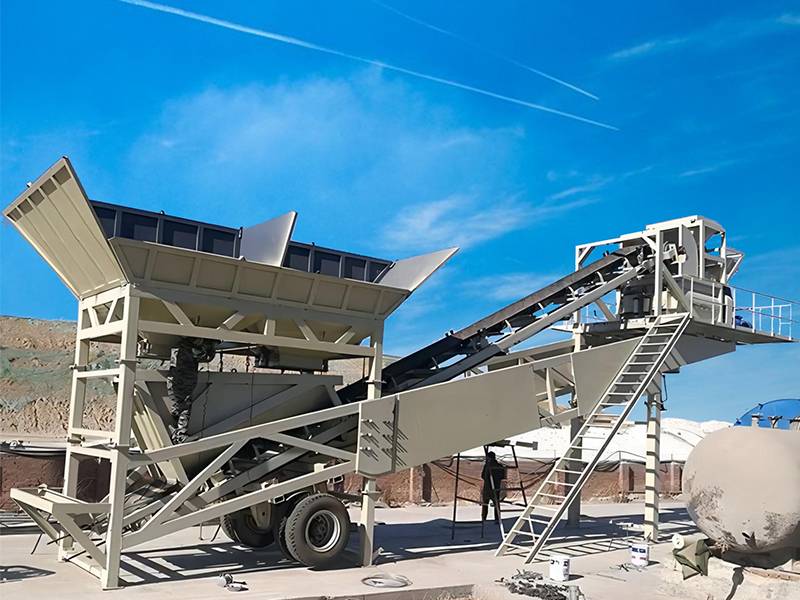

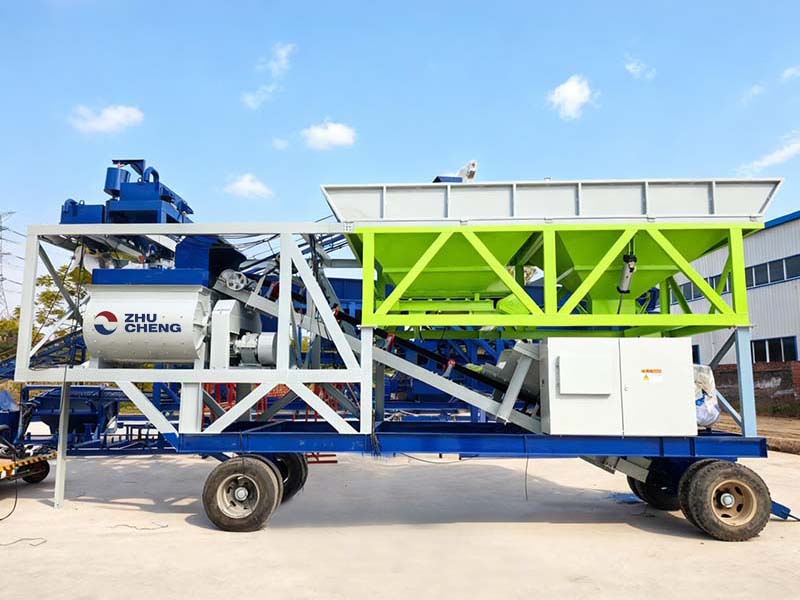

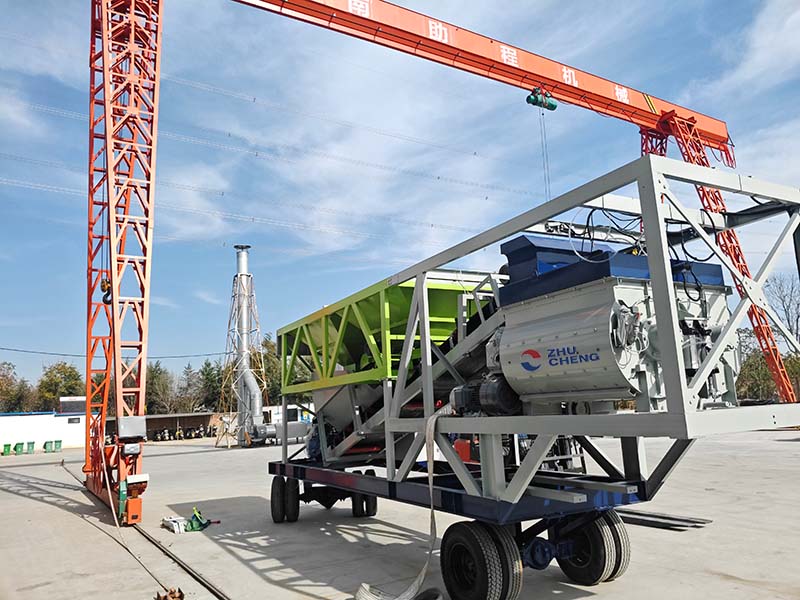

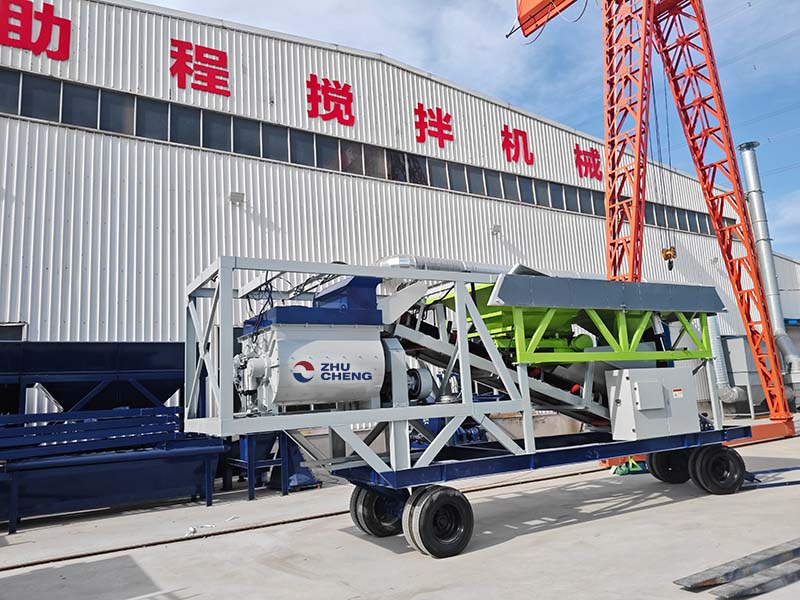

YHZS25 Mobile Concrete Batching Plant

  • Feeding Mode: Belt Conveyor
  • Productivity:25m3/h
  • Voltage:380V, 50/60Hz, 220V, 440V, can be customized
  • Power:42kw
  • Discharge height:3.8m
  • Control system : Fully automatic/Manual
  • Application : Commercial concrete, construction projects, buildings, roads, bridge projects, airport, water projects and concrete prefabrication factory, etc.
What's AppSend InquirySend Emails
  • Product Details
  • Parameters

Introduction

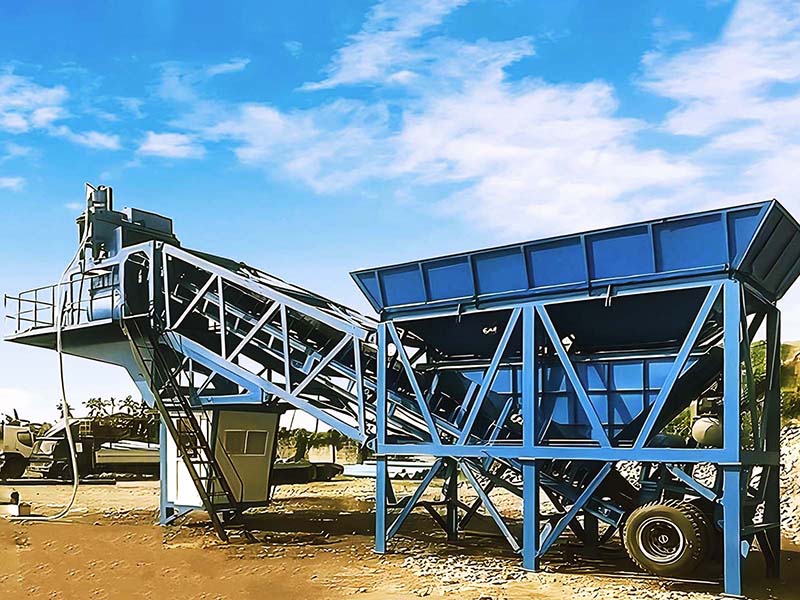

YHZS35 35m3/h Mobile Concrete Batching Plant

YHZS25 belt conveyor mobile concrete mixing plant adopts a JS500 double horizontal shaft concrete mixer, batching machine adopts a PLD800 batching machine, the theoretical output is 25 cubic meters per hour.


Main Details

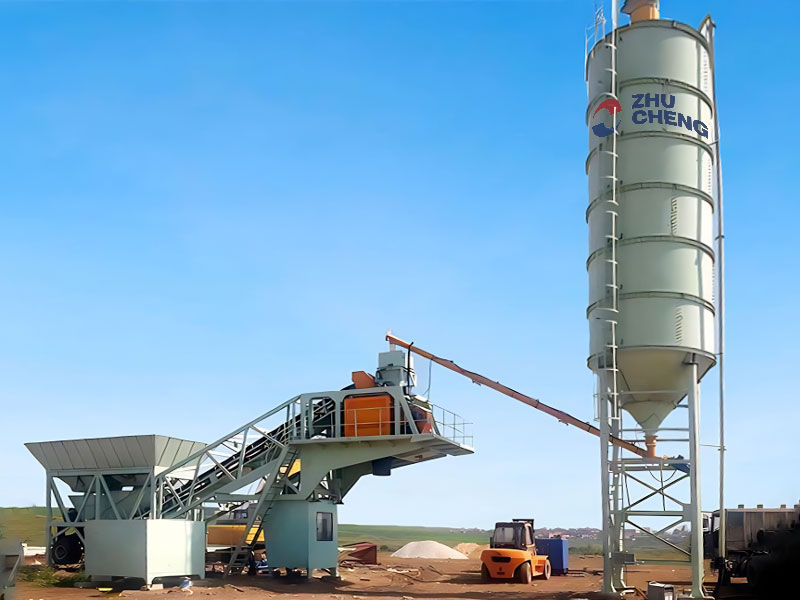

YHZS25 Mobile Concrete Batching Plant

Mixing System

  1. Patented multi-end sealing technology to avoid leakage and protect shaft ends..
  2. Adopts wear-resistance blade and liner plates, lifetime is over 60,000 times.
  3. Equipped with auto lubrication pump to save labor and extend lifetime.
  4. Advanced motor and reducer driven system to keep stable performance.

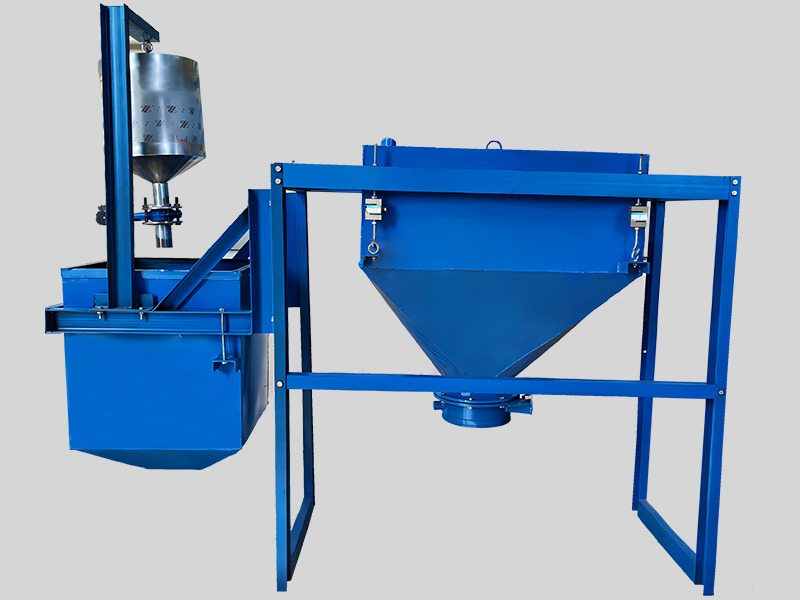

Weighing System

1. Powder and water or additives are measured independently, ensuring fast and high accuracy weighing.
2. Famous brand sensor ensures the error no more than 1%.

YHZS35 35m3/h Mobile Concrete Batching Plant

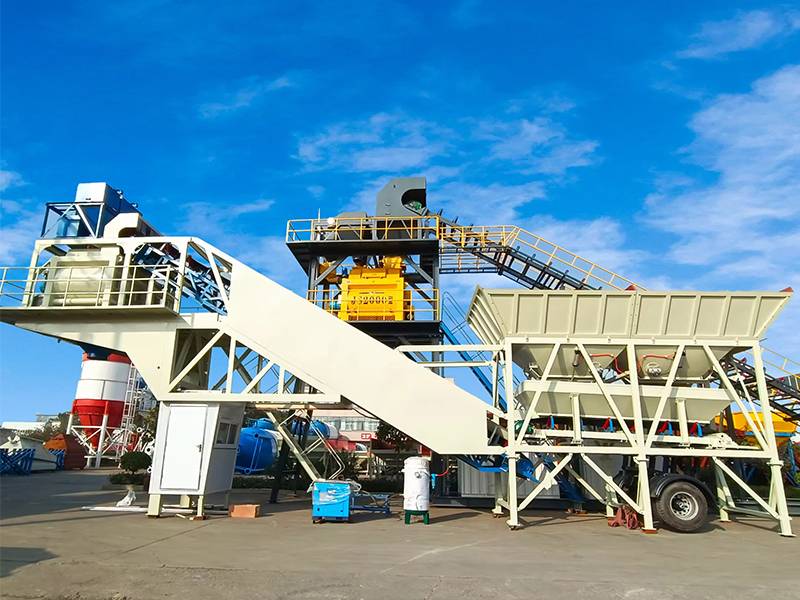

YHZS25 Mobile Concrete Batching Plant

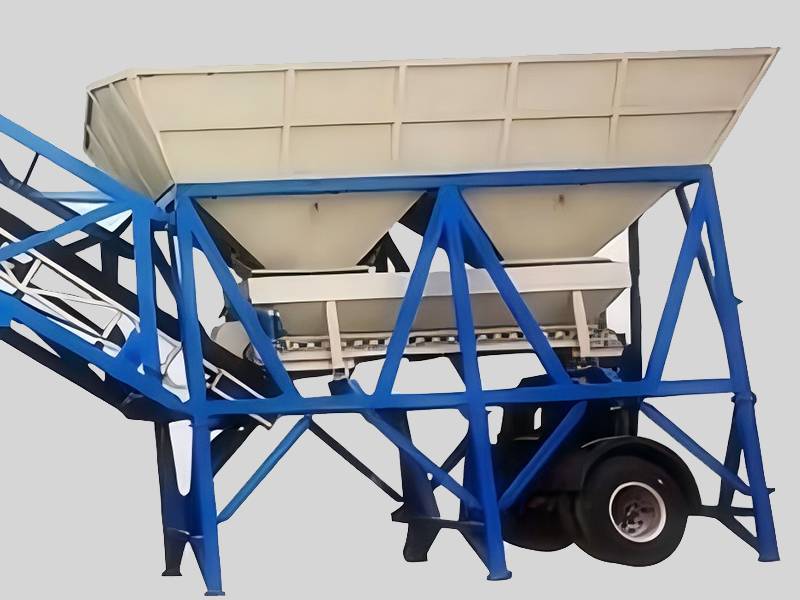

Concrete Batching System

  1. Sand storage bin is with large vibrator, guarantee smooth and fast discharge.
  2. Accumulative weighing system or separate weighing system is available choice.
  3. High accuracy sensor ensures the error no more than 2%.

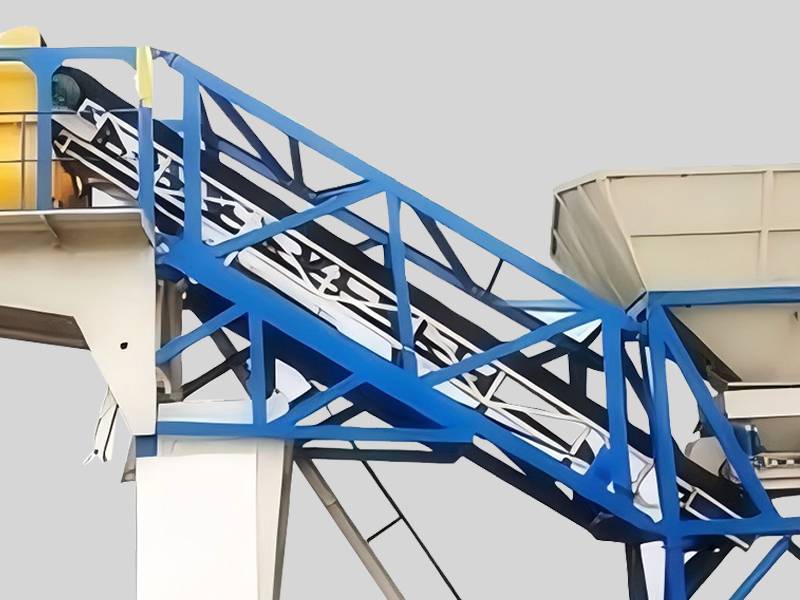

Aggregate Conveying System

  1. Inclined angle up to 32 degree, stand small area.
  2. Equipped with recycled belt conveyor to reuse the leakage material.
  3. Fully rain cover to reduce the dust emission and protect the belt if customers need.

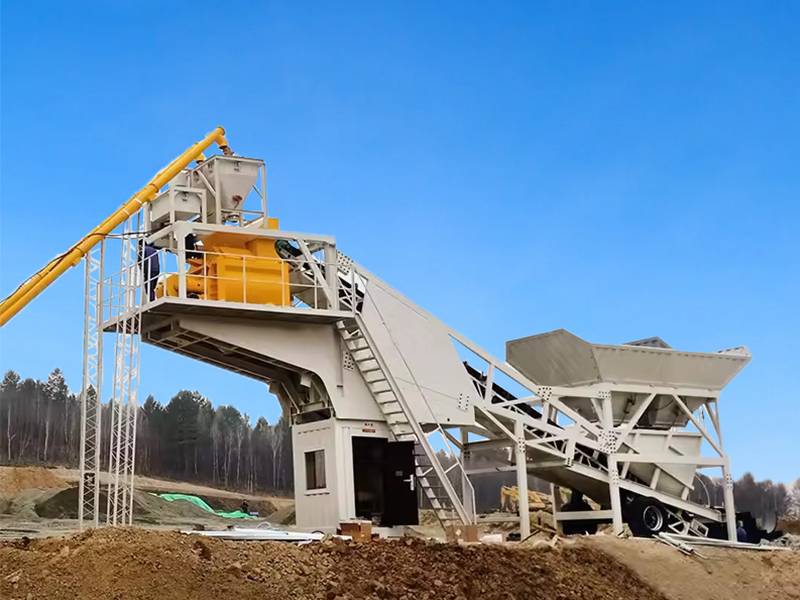

YHZS25 Mobile Concrete Batching Plant

YHZS25 Mobile Concrete Batching Plant

Control System

  1. Automatic or manual can be adjusted flexibly smoothly.
  2. All wires & cables are coded, easy to track and maintenance.
  3. Intelligent management system for task tracking, printing, etc.
  4. Computer+ PLC control system to ensure simple and stable operation, HD display can show clearly about the operation of each part.

Cement Screw Conveyor

  1. High revolving speed, large conveying capacity and high precision.
  2. Easy assemble, easy connection and reliable sealing.
  3. Wide application: a variety of powder, granular or small bulk materials.
  4. Angle and length are all can be customized.

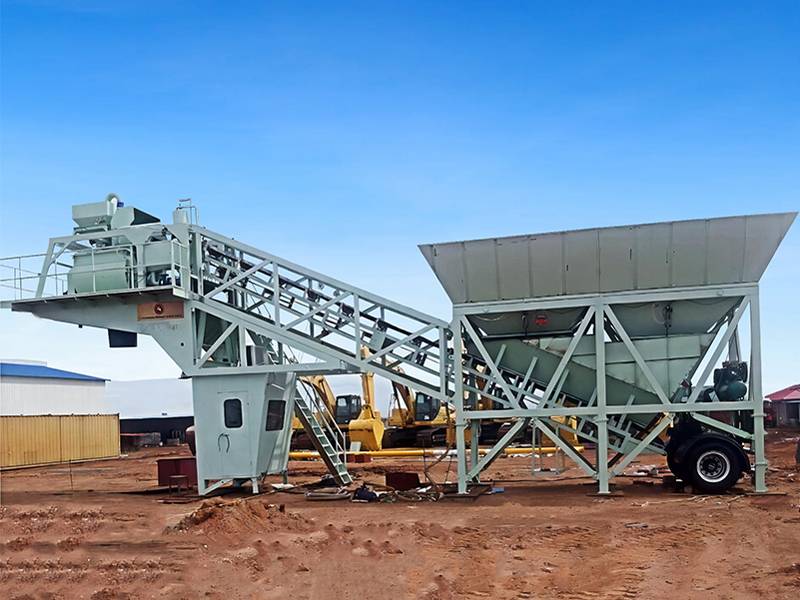

YHZS25 Mobile Concrete Batching Plant

YHZS25 Mobile Concrete Batching Plant

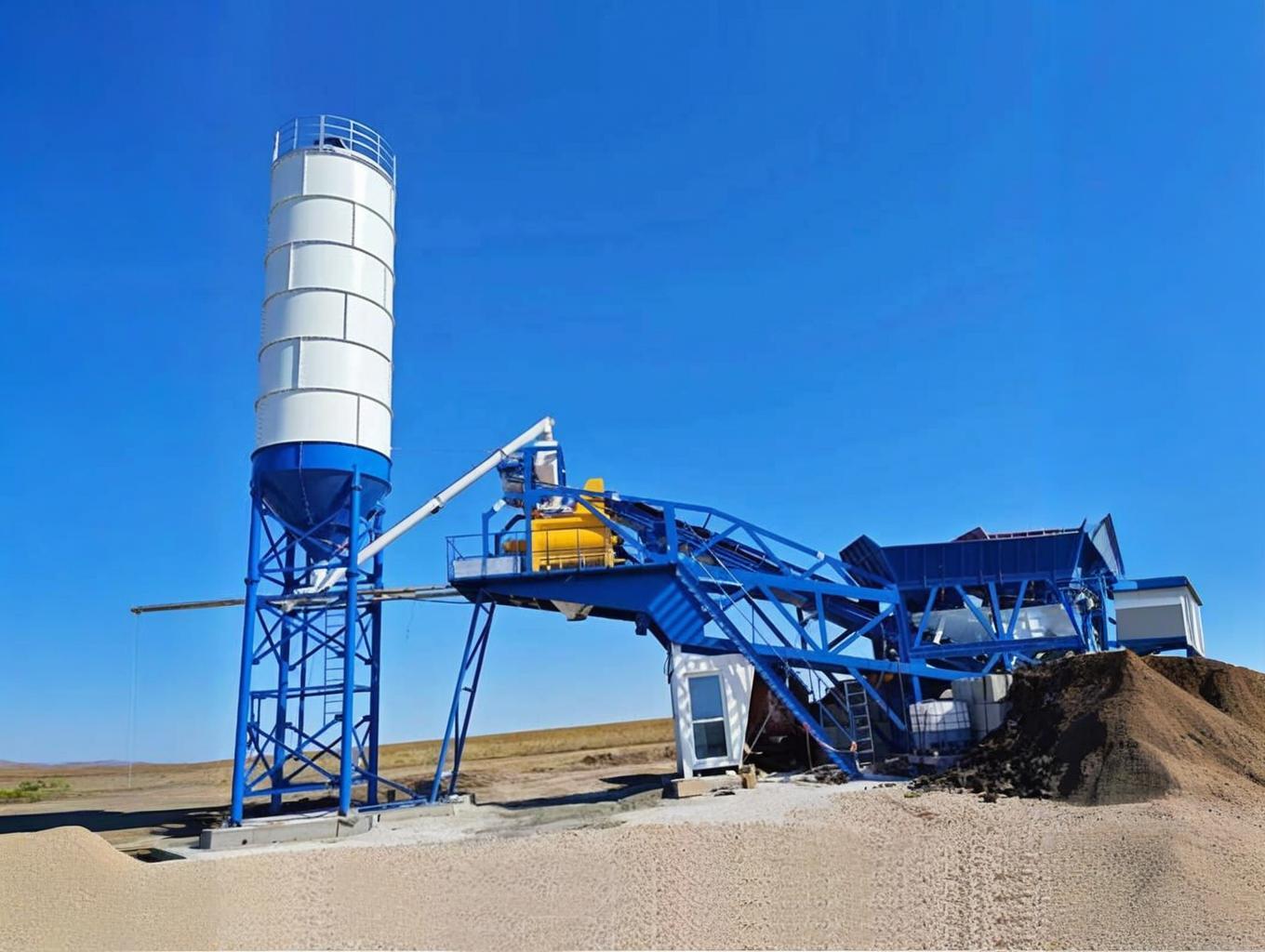

Cement Silo

  1. Vertical or horizontal cement silo is available for selection.
  2. Capacity range from 50T to 300T can be customized.
  3. Accessories are including air-break device, gate valve, relief valve, level meter, dust collector, etc.
  4. High-quality steel, good sealing, stable support and long service life.

Advantages


Service

YHZS35 35m3/h Mobile Concrete Batching Plant

Pre-sale Services

  1. Quick response.
  2. Provide detailed quotation.
  3. Provide scheme design and site planning.
  4. Accept customer's visit.

On-sale Services

1. If necessary, send technicians to the site for installation and commissioning.
2. Provide complete technical information.
3. Free training of operators.

YHZS35 35m3/h Mobile Concrete Batching Plant
YHZS35 35m3/h Mobile Concrete Batching Plant

After-sale Services

  1. One year warranty for mixing equipment, two years warranty for core electrical appliances, free accessories for quality problems during the warranty period, except for wearing parts.
  2. Make regular remote visits.
  3. Lifelong after-sales technical support service.

Customer Visits


Delivery


Application

Whole
Machine
Model YHZS25
Productivity 25m³/h
Discharge Height 3.8-4.1m
Total Power 42kw
Concrete Mixer Model JS500
Discharge Volume 500L
Charging Volume 750L
Mixing Cycle 60S
Batching Machine Model PLD800
Weighing Hopper Volume 800L
Aggregate Silo Capacity 4m³
No. of Storage Hopper 2
Pneumatic System Air Compressor Model 1.0-7
Rated Exhaust Pressure 0.8MPa
Rated Displacement 1.67m³/min
Weighing System
Accuracy
Aggregate ±2%
Cement ±1%
Water ±1%
Additive ±1%
