JBS30 Electric Concrete Mixer Pump

  • Capacity: 30m³/h
  • Power Type:Electric engine
  • Max. Aggregate Diameter:20/30mm
  • Max. Delivery Distance:120/350m
  • Distribution Valve Type:S valve
  • Max.Concrete Pumping Pressure: 6/10MPa
  • Application: Building construction, Roads and bridges, Tunnel engineering, Water conservancy and electric power, Rural construction, etc.
What's AppSend InquirySend Emails
  • Product Details
  • Parameters

Introduction

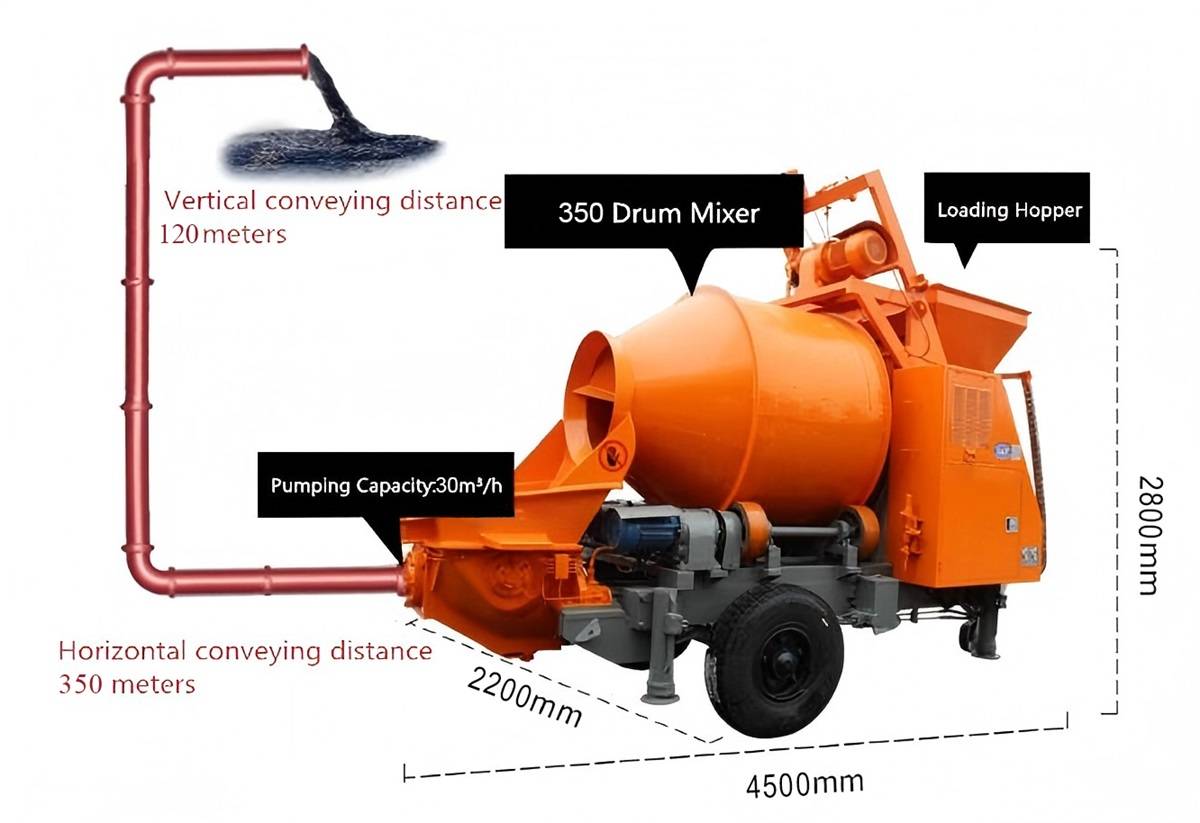

JBS30 Electric Concrete Mixer Pump

JBS series concrete pump equipment integrates concrete mixing and transportation. It is easy to move and flexible. It can transport large aggregate concrete as well as fine stone concrete or mortar. It is especially suitable for occasions where the project volume is not large and frequent transfers are required.


Main Details

JBS30 Electric Concrete Mixer Pump

Power System

Pure copper motor, saving manpower, safe and reliable.


Main Oil Pump

Adopt domestic famous brand or Rexroth, Kawasaki series.

JBS30 Electric Concrete Mixer Pump

JBS30 Electric Concrete Mixer Pump

Lubrication System

Adopt automatic lubrication system, high oil pressure with stable lubrication effect.


Control System

Adopt Japan Omron PLC control system, equipped with wireless remote control, makes the operation more flexible and convenient.

JBS30 Electric Concrete Mixer Pump

JBS30 Electric Concrete Mixer Pump

Air Cooling System

High-efficiency cooling, energy saving and consumption reduction, ensuring the continuous and stable operation of equipment.


Seamless Steel Pipe

Efficient transportation, corrosion resistance and durability, sealing and leakage prevention, and convenient installation.

JBS30 Electric Concrete Mixer Pump

JBS30 Electric Concrete Mixer Pump

Cleaning Ball

Anti-corrosion, durable, efficient washing, and prolonged service life.


Advantages


Service

Vertical Cement Silo

Pre-sale Services

  1. Quick response.
  2. Provide detailed quotation.
  3. Provide scheme design and site planning.
  4. Accept customer's visit.

On-sale Services

1. If necessary, send technicians to the site for installation and commissioning.
2. Provide complete technical information.
3. Free training of operators.

Vertical Cement Silo
Vertical Cement Silo

After-sale Services

  1. One year warranty for mixing equipment, two years warranty for core electrical appliances, free accessories for quality problems during the warranty period, except for wearing parts.
  2. Make regular remote visits.
  3. Lifelong after-sales technical support service.

Customer Visits


Delivery


Application

Item JBS30 JBS40
Theoretical output 30m3/h 40m3/h
Max. concrete pumping pressure 10MPa 10MPa
Power type Motor Motor
Electric motor 37kw 45kw
Main oil pump Jinda Kawasaki
Main oil pump capacity 71ml/min 112ml/min
Theoretical delivery distance 120/350m 160/500m
Hopper capacity 550L 550L
Max. aggregate diameter 20/30mm 30/40mm
Inside diameter of delivery pipe 100mm 150mm
Loading capacity of the mixer 560L 720L
Unloading capacity of the mixer 350L 450L
Mixing motor 5.5kw 5.5kw
Hoisting motor 4.5kw 4.5kw
Dimension 4500x2200x2800mm 4800x2200x2800mm
Total weight 5000kg 5500kg
