Cylinder Failure-One of the Common Faults of Concrete Mixing Station

Cylinder Failure-One of the Common Faults of Concrete Mixing Station

2024-08-06

Due to improper assembly and long-term use of the cylinder, the pneumatic actuator (cylinder) is prone to internal and external leakage, insufficient output force and unstable action, poor cushioning effect, piston rod and cylinder head damage and other failures. (1) Internal and external leakage of the cylinder is generally caused by eccentric installation of the piston rod, insufficient supply of lubricating oil, abrasion or damage of the sealing ring and sealing ring, impurities in the cylinder and scars on the piston rod. Therefore, when the cylinder leaks internally and externally, the center of the piston rod should be readjusted to ensure the coaxiality of the piston rod and the cylinder. Always check whether the oil mist sprayer works reliably to ensure good lubrication of the actuator; When the sealing ring and sealing ring are worn or damaged, they must be replaced in time; If there are impurities in the cylinder, they should be removed in time; When there are scars on the piston rod, replace it with a new one. (2) The output force of the cylinder is insufficient and...

Air Source Fault-One of the Common Faults of Concrete Mixing Station

Air Source Fault-One of the Common Faults of Concrete Mixing Station

2024-08-06

(1) The faults of air compressor include: damage of check valve, serious wear of piston ring, damage of air inlet valve and blockage of air filter, etc. If you want to judge whether the check valve is damaged, just turn off the power supply after the air compressor stops automatically for more than ten seconds, and turn the big belt wheel by hand. If you can rotate it easily for one week, it shows that the check valve is not damaged. On the contrary, the check valve has been damaged; In addition, it can also be judged from the exhaust situation of the exhaust port under the automatic pressure switch. Generally, after the air compressor stops automatically, it should stop exhausting after about ten seconds. If it stops exhausting until the air compressor starts again, it means that the check valve has been damaged and needs to be replaced. When the pressure of the air compressor rises slowly and is accompanied by oil string phenomenon, it shows that the piston ring of the air compressor has been seriously worn and...

How to Transport Concrete with Transport Tankers After Production

How to Transport Concrete with Transport Tankers After Production

2024-08-06

1. The speed of service road: 24 km/ h, taking the round-trip transportation distance of 24 km as an example. 2. Loading time of concrete mixer truck: 1/6 hour/car for HZS120 and 7/30 hour for HZS90. 3. Unloading time of concrete mixer truck: 5 minutes. 4. Every time one truck of concrete is delivered, it takes 1.25 hours for HZS120 and 1.32 hours for HZS90. 5. The number of vehicles to be transported within 6 hours: HZS120 6×1/1.25≈5 (vehicles) and HZS90 6×1/1.32≈4 (vehicles). 6. 320 m3 of beam pouring concrete is completed within 6 hours, and the number of vehicles to be transported is 320×1/6.5≈50 (vehicles). 7. The allocation of concrete mixing truck should be considered. Due to the service road transportation, there should be a certain empty tank rate. HZS120 mixer station, with a host capacity of 2m3, should be equipped with a 9 m3 concrete mixer truck for loading four plates of materials. The transportation distance is about 12KM, and 320 m3 of concrete is poured on the beam within 6 hours, which is suitable for 10~11 concrete...

What Should be Paid Attention to When Buying Concrete Mixing Station

What Should be Paid Attention to When Buying Concrete Mixing Station

2024-08-06

1. Performance label of construction concrete From this, we can choose what kind of mixing machine to use. For example, in water conservancy projects, the forced mixing host must be selected. In addition, batching stations and storage bins should be selected according to the types of concrete materials that can be mixed. 2. Task quantity and construction period of concrete construction Use these two parameters to select the mixing station with large specifications. Let the total task of concrete be m; The number of concrete pouring days is T; The working hours per day are h; If the utilization coefficient is K, the specification of the mixing station should be X=M/(T*H*K), where K is 0.7-0.9. In the selection, the transportation condition of finished concrete should also be considered. Such as: direct pumping or vehicle transportation. The volume of conveying vehicles is also an important basis for determining the type of mixing station. 3. Construction environment and construction object When choosing to buy concrete mixing station, the influence of construction object and construction environment should be fully considered, so as to...

Components of a Standardized Concrete Batching Plant

Components of a Standardized Concrete Batching Plant

2024-08-02

A standardized concrete batching plant is essential for producing high-quality concrete efficiently. This article explores the key components that make up a standardized concrete batching plant, ensuring you have a comprehensive understanding of each part. 1. Aggregate Batching Machine The aggregate batching machine is a crucial component, responsible for storing and measuring different types of aggregates, including sand, gravel, and crushed stone. Accurate measurement and proportioning of these materials are essential for a consistent concrete mix. 2. Conveyor Belt A conveyor belt plays a vital role in transporting the measured aggregates from the batching machine to the mixer. It ensures a continuous and smooth flow of materials, contributing to the efficiency of the concrete production process. 3. Cement Silo The cement silo is a storage tank for cement, ensuring a steady supply during the batching process. Equipped with a dust collector, it minimizes environmental pollution and maintains clean air quality around the plant. 4. Weighing System The weighing system is equipped with load cells and digital scales to measure the weight of each material precisely. This includes aggregates, cement, water,...

Small Concrete Batching Plant: Advantages and Pricing Explained

Small Concrete Batching Plant: Advantages and Pricing Explained

2024-08-01

In modern construction projects, small concrete batching plants have become increasingly popular due to their unique advantages. This article will provide a detailed overview of the advantages of small concrete batching plants and their pricing, helping you make an informed decision when choosing equipment. Advantages of Small Concrete Batching Plants Pricing of Small Concrete Batching Plants The price of small concrete batching plants varies depending on the brand, model, configuration, production capacity, and additional features. Here is an approximate price range for reference: Actual prices should be confirmed based on specific needs and equipment configurations. It is recommended to compare multiple options and choose the equipment that best meets your project requirements. How to Choose the Right Small Concrete Batching Plant Conclusion Small concrete batching plants have become the preferred choice for many small to medium-sized projects due to their compact footprint, easy mobility, simple operation, low investment cost, and easy maintenance. We hope this article has provided you with a comprehensive understanding of small concrete batching plants, enabling you to choose the best equipment for your needs and ensure...

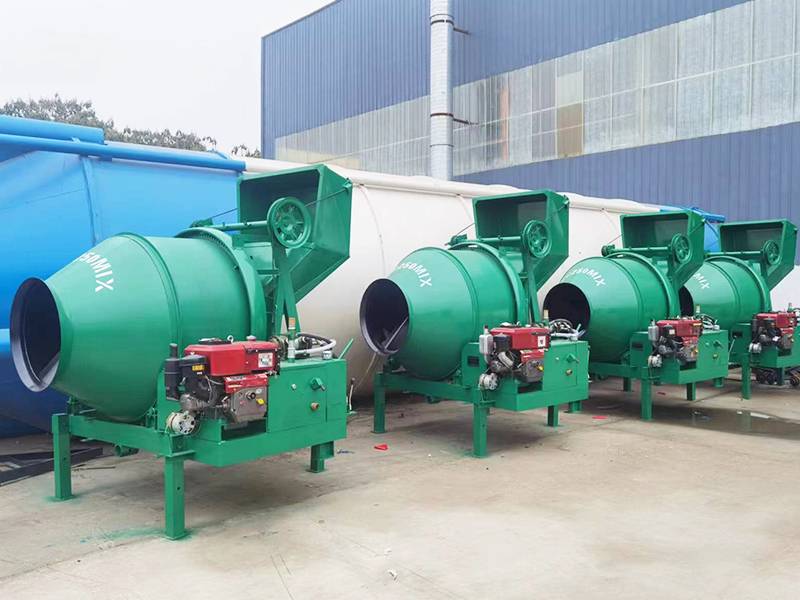

Difference of Feeding Mode of Diesel Concrete Mixers

Difference of Feeding Mode of Diesel Concrete Mixers

2024-08-01

Introduction JZC series diesel concrete mixer is a self-falling concrete mixer with double-cone mixing drum for forward mixing and reverse discharging. Each tank can mix 350 liters, 500 liters, 750 liters of concrete (referring to the volume of compacted concrete), and can produce 6-22 cubic meters per hour. The diesel concrete mixers are suitable for general construction sites, roads, bridges and small and medium-sized concrete component factories. Difference The difference between the diesel concrete mixers is the control method of the hopper lift. The 350 liters concrete mixers has two types: wire rope and hydraulic, while the 500 liters concrete mixers and above models only have hydraulic. The JZC500-DH diesel drum concrete mixers can be easily disassembled and transported. It is the best mixer for various areas without power supply and construction sites where it is inconvenient to introduce power lines.

How to Choose The Simple Concrete Batching Plant And Commercial Concrete Batching Plant

How to Choose The Simple Concrete Batching Plant And Commercial Concrete Batching Plant

2024-08-01

1. Different UseGenerally speaking, the engineering concrete mixing station is built next to the construction site. It mainly serves a certain project. It has a single configuration and can only meet the concrete required for the production of this project. It is mainly used to produce the main concrete of its own engineering.For commercial concrete mixing stations, it is generally used to invest in the sale of concrete, that is, to operate the concrete trading business. According to the different needs of the business and the requirements of the customers, the concrete required by the customer is produced for sale. 2. Different ConfigurationFirst, the type of admixture, the number of cement and the size of the cement silo are different. The number of admixtures, cement, cement silo in the simple concrete batching plant is small.The commercial batching plant is opposite.Secondly, the simple batching plant does not need to be sealed, and the structure is simple. The commercial mixing station needs external sealing, pursuing beautiful appearance, environmental protection and large structure. 3. Different PriceGenerally speaking, the price of commercial mixing station...

Common Types of Concrete Batching Plants and Their Features

Common Types of Concrete Batching Plants and Their Features

2024-07-31

Concrete batching plants are essential equipment in modern construction, used to produce high-quality concrete to meet various project needs. Understanding the common types of concrete batching plants and their features can help in selecting the right equipment for specific engineering requirements. Here are some common types of concrete batching plants and their main characteristics: I. HZS Series Skip Loading Concrete Batching Plants 1. HZS25 2. HZS50 3. HZS75 II. Medium and Large HZS Series Belt Loading Concrete Batching Plants 4. HZS120 5. HZS180 III. Mobile Concrete Batching Plants 6. YHZS25 7. YHZS50 IV. Foundation-free Concrete Batching Plants 8. MHZS Series Summary There are many types of concrete batching plants, each with its own characteristics. Selecting the appropriate type of concrete batching plant requires considering factors such as project scale, specific needs, and construction environment. HZS series are suitable for medium to large fixed-site projects, while YHZS series mobile batching plants are ideal for projects requiring frequent relocation. Additionally, environmental-friendly concrete batching plants are a good choice for projects with high environmental standards. Choosing the right concrete batching plant not only...
